12V Lishen 202Ah Cells Li-ion Phosphate LiFePO4 2.42KWh Battery Pack Kit With Smart 250A BMS
AUD $1,146.00
AUD $1,700.00
Price includes Freight and GST
In Stock - Dispatched Next Business Day
12V Lishen 202Ah Cells Li-ion Phosphate LiFePO4 2.424KWh Battery Pack Kit.
3 Year Warranty on Cells & BMS
This Battery Pack is a 12Volt (12.8V) 202 (Ah) Amp Hour, 2.424 (KWh) Kilo Watt Hour.

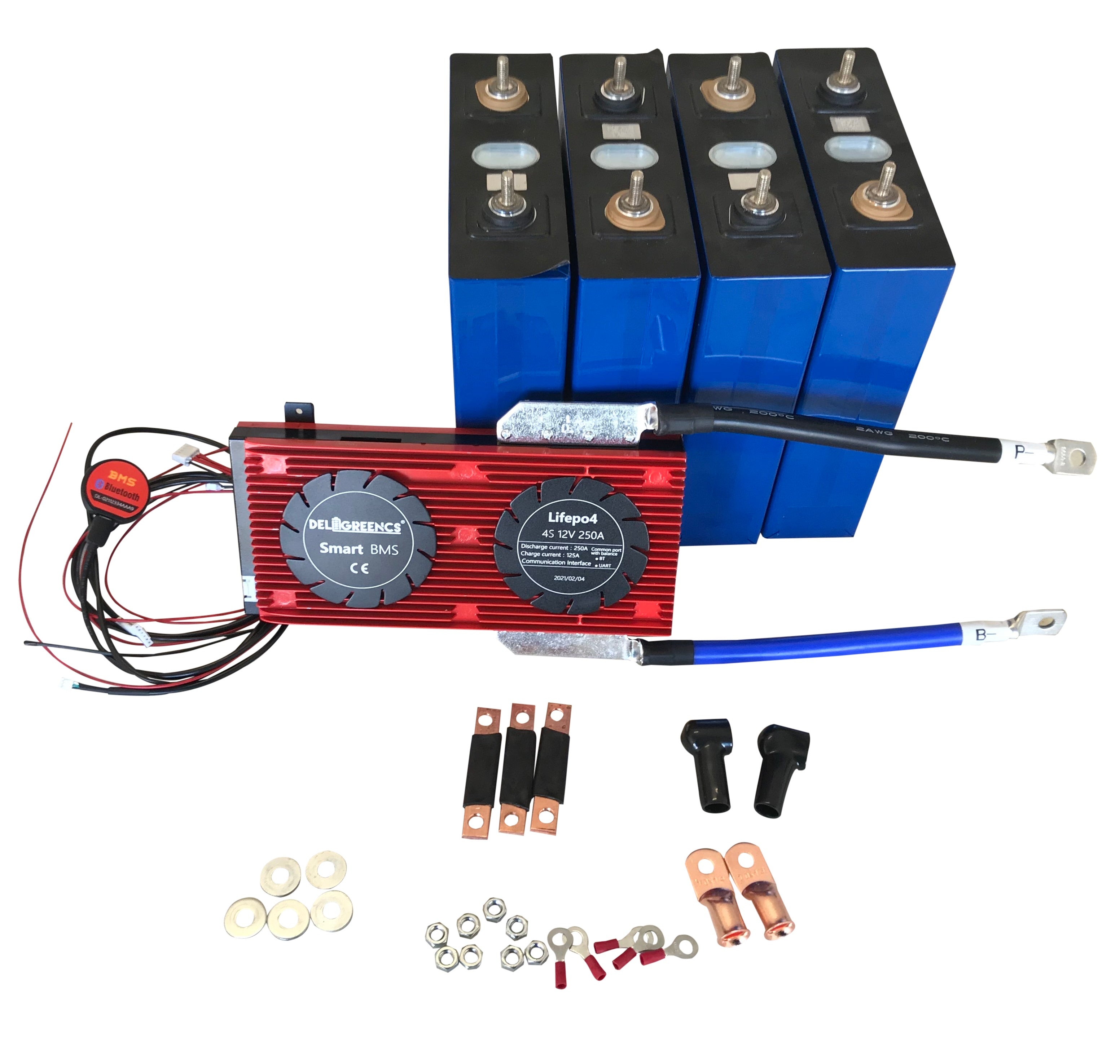

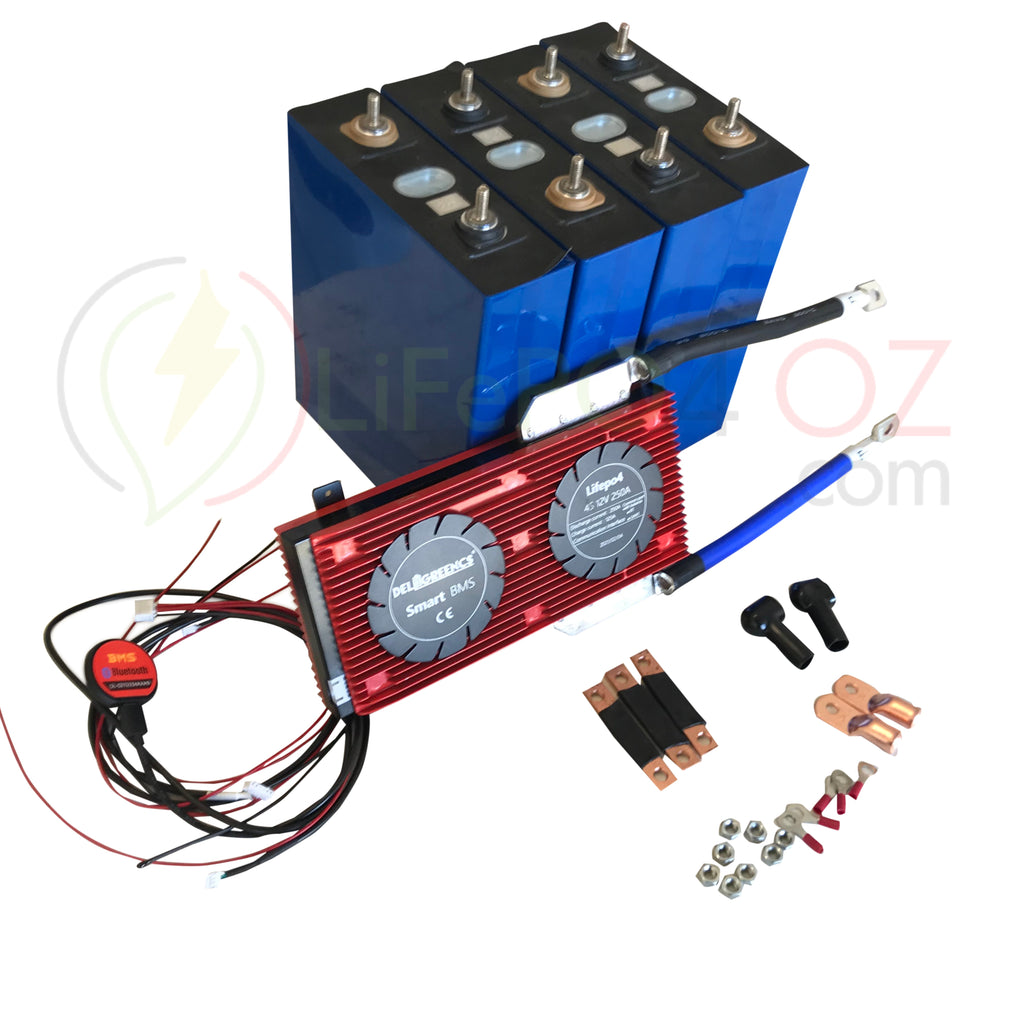

This is a kit made up of:
- 4 x 3.2v LiFePO4 Lishen 202ah cells

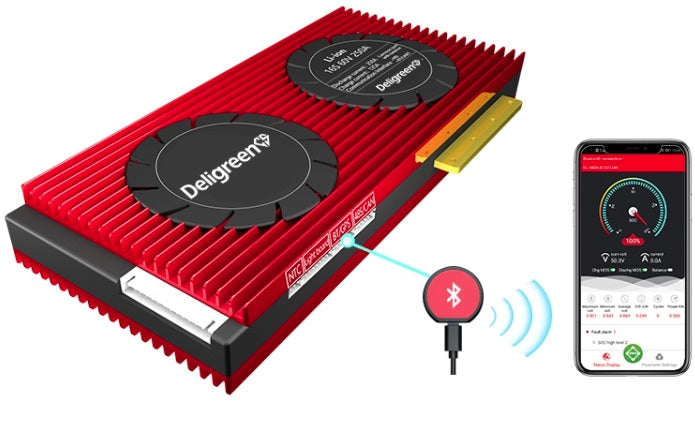

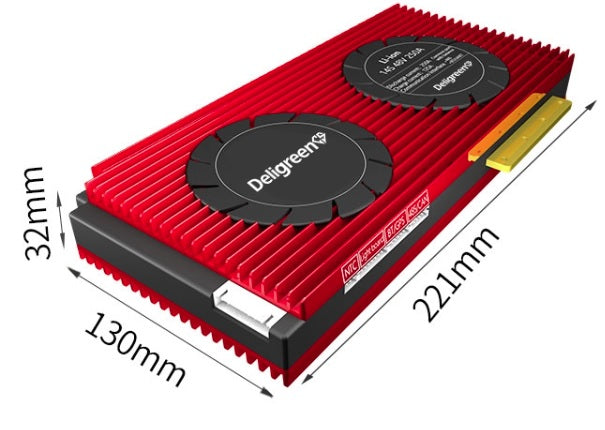

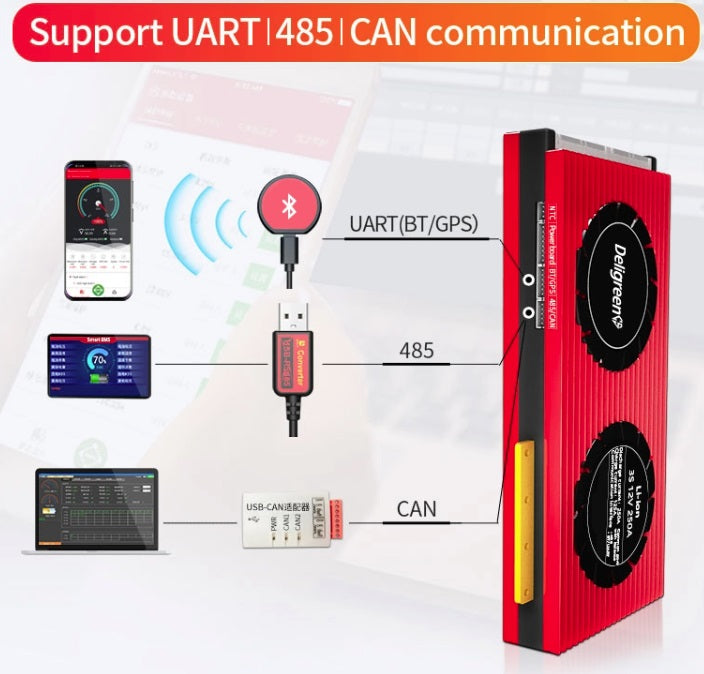

- 1 x 250Amp 4S Deligreen Smart BMS
- 1 x 4S BMS cable
- 3 x Copper Bus Bars
- 5 x Ring Terminal Connectors
- 8 x 6M nuts

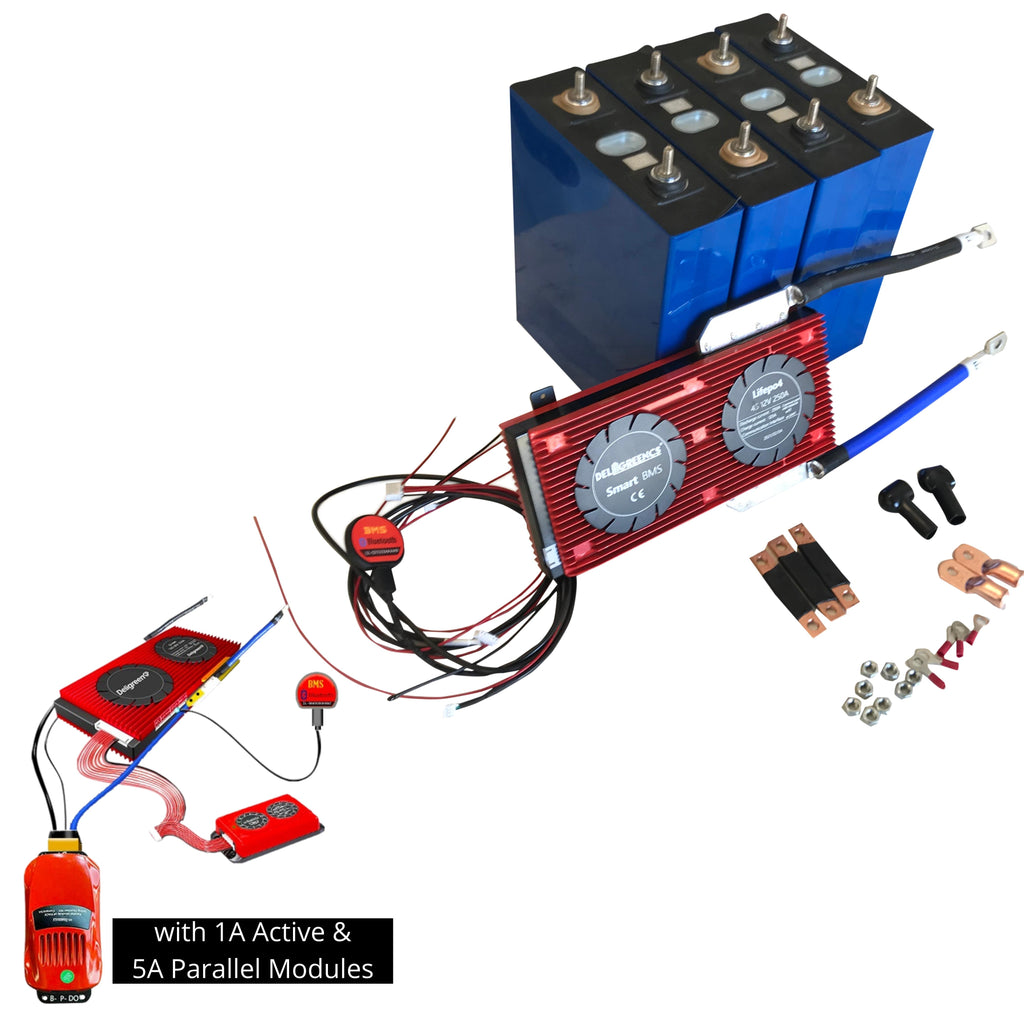

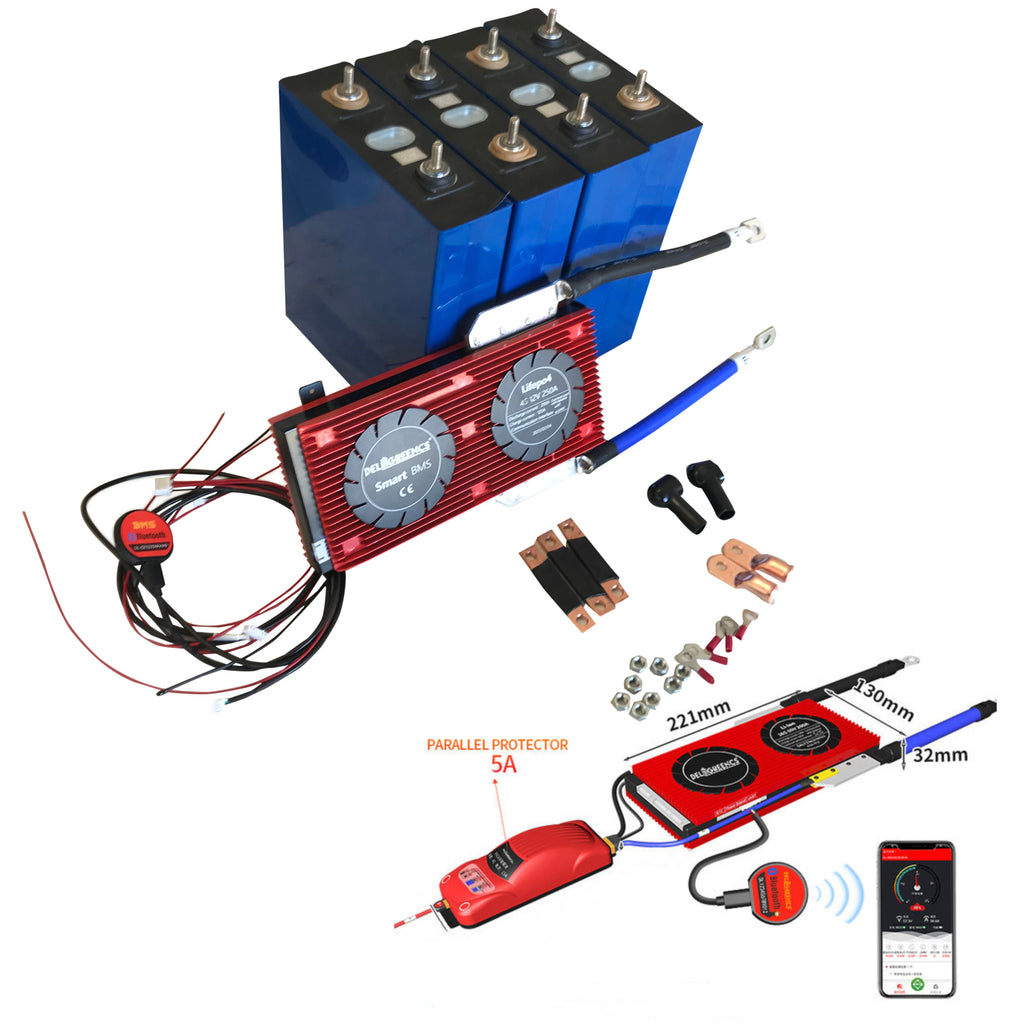

- 5A Parallel Module (Optional Extra)

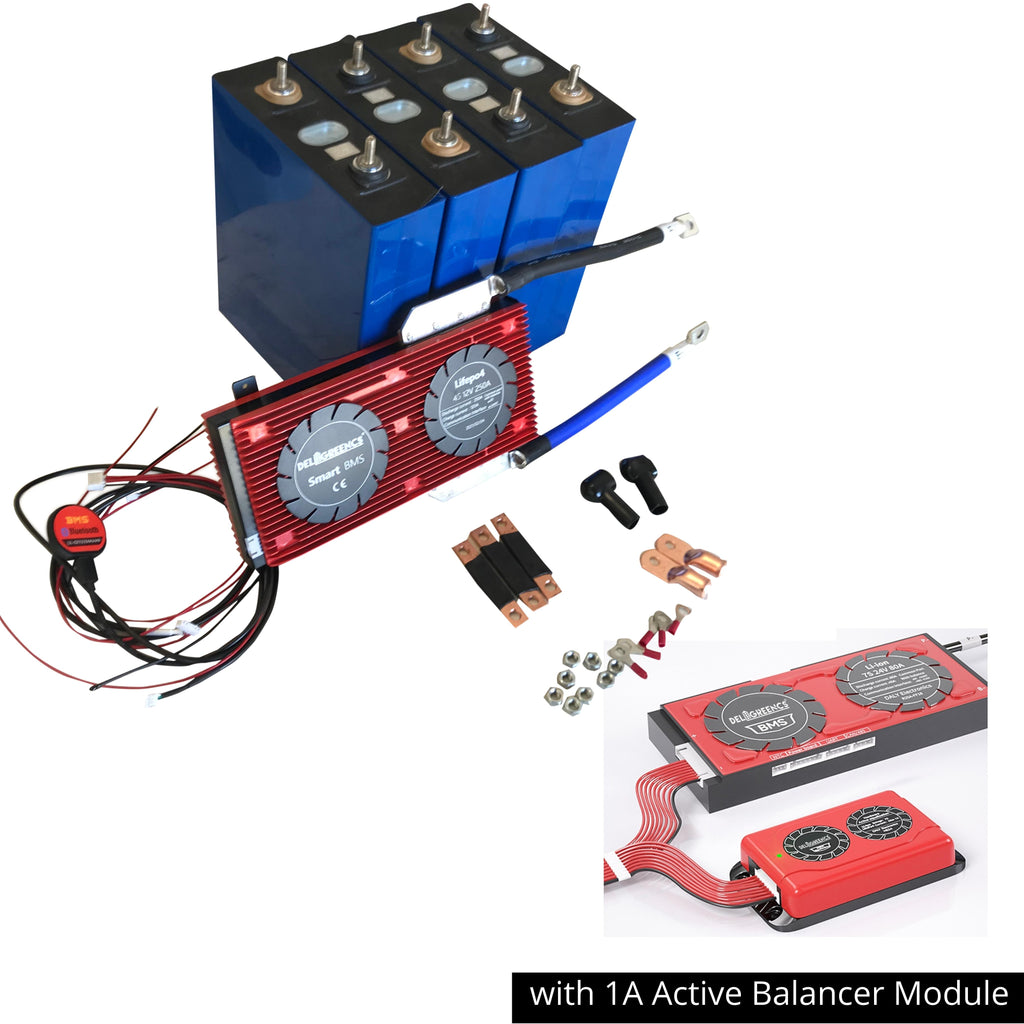

- 1A Active Balancer (Optional Extra)
Total Dimensions is approximately 215h x 175w x 216d (mm)
Dimensions for each cell is: 215h x 175w x 54d (mm)
Total Weight: 19kg
Each cell is 3.9kg
These are Brand New Solar Grade Cells, Matched cells. Do not be fooled by cheap recycled cells.
This kit is perfect for building your own power bank for caravans, RV's, Motorhomes or Off Grid Houses. LiFePo4 are around half the weight as AGM or Lead Acid batteries with higher charge cycles. They are also more stable than other Lithium Iron (Li-ion) batteries.
Please Note: Make sure you use a BMS (Battery Management System) with temperature sensor when connecting in series to ensure safety and longevity.
We also have 24V, 36V & 48V Batteries and BMS packages available.
What is a Parallel Module?
What is an Active Balancer Module?
Before working with LiFePO4 cells please read our Product Safety Disclaimer
