EVE 230ah 3.2V LiFePO4 Cell - LF230 Grade A
Lithium 3.2V EVE 230Ah Cell Li-ion Phosphate LiFePO4 Battery.
5 Year Warranty on Cells - Brand New Auto Grade (Grade A) Cells with 5 Year Manufacturers Warranty - holds IEC62619 Standards
Dimensions for each cell is: 174w x 207h x 54d (mm)
Weight: 4.11kg
Min. Capacity: 230Ah
Min. Energy: 736Wh
AC Impedance Resistance: ≤0.30mΩ
Nominal Voltage: 3.2V
Charging Cut-off Voltage: 3.65V
Discharging Cut-off Voltage: 2.5V
Standard Charging Current: 125A (0.5C)
Max. Continuous charging/discharging Current: 230A 1.0C
Max. Pulse charging/discharging Current: 460A 2C (30S)
Cycle Life: 4000 Cycles @80% DOD
Charging Temperature: 0℃~60℃
Discharging Temperature: -30℃~60℃
Dimension: 207.3±0.50mm(H)*173.93±0.50mm(w)*53.85±0.4mm(T)
Weight: 4.11±0.1 kg
These are a Brand New Automotive Grade (Grade A) Cells. These are the highest quality cell certified for EV use and we can provide factory test report upon request.
Perfect for building your own Electric Vehicles or high current draws. Fine to use for solar storage but overkill unless you're drawing high currents. Approximately half the weight as AGM or Lead Acid batteries with upto 6 times more charge cycles.
This is a single 3.2V EVE 230ah cell.

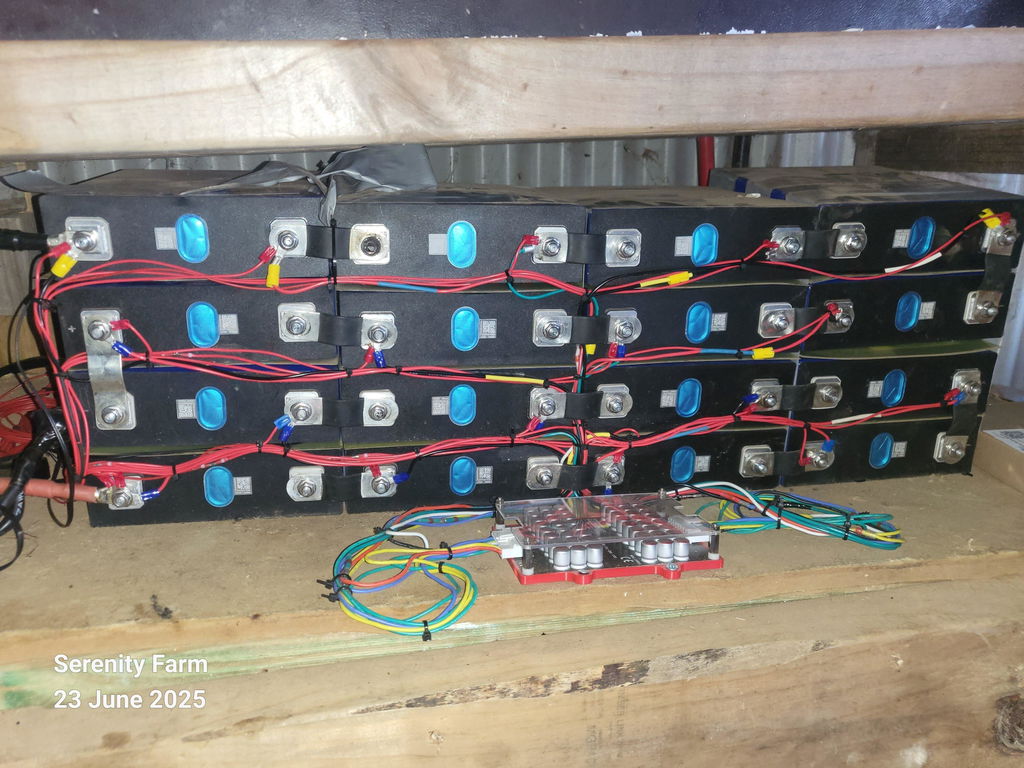

If you want to bulid a battery bank you'll need:
- 4 in Series = 12V (12.8V) 230ah Bank
- 8 in Series = 24V (25.6V) 230ah Bank
- 12 in Series = 36V (38.4V) 230ah Bank
- 16 in Series = 48V (51.2V) 230ah Bank
Make sure you use a BMS (Battery Management System) with temperature sensor when connecting in series to ensure safety and longevity.
We also sell these EVE 230ah in a 12v, 24v, 36V and 48V Kits which also includes compatible BMS's.
Before working with LiFePO4 cells please read our Product Safety Disclaimer
