24V 3kW Hybrid Solar Inverter with 100A MPPT | PVG3000-24
PVG3000-24 3kW Hybrid Solar Inverter – 24V Pure Sine Wave with 100A MPPT
The PVG3000-24 Hybrid Solar Inverter is a powerful all-in-one solution for off-grid solar systems, combining a 3000W pure sine wave inverter, 100A MPPT solar charger, and 80A AC battery charger into a compact and reliable unit.
Designed for 24V battery systems, the PVG3000-24 supports up to 4000W of solar input with an impressive 120V~500VDC PV open-circuit voltage range, allowing for longer solar strings, reduced cable losses, and simpler installations.
Perfect for cabins, tiny homes, sheds, workshops, backup power systems, and off-grid living, this inverter delivers clean, stable power for sensitive electronics and household appliances.
⚡ Key Features
- 3000W Pure Sine Wave Output: Clean and reliable power suitable for household appliances and sensitive electronics.
- Built-In 100A MPPT Solar Charger: Maximises solar harvest and charging efficiency.
- High Voltage Solar Input: Supports up to 500VDC PV open-circuit voltage with an MPPT operating range of 120V–450VDC.
- 4000W Solar Capacity: Connect up to 4000W of solar panels.
- 24V Battery System: Compatible with 24V LiFePO4 and lead-acid battery banks.
- 80A AC Charger: Fast battery charging from mains or generator power.
- Pure Sine Wave Technology: Safe for computers, televisions, power tools, pumps, and other sensitive loads.
- Fast Transfer Time: 10ms for computers and 20ms for household appliances.
- Battery Equalisation Function: Optimises battery performance and extends battery life.
- Built-In Anti-Dust Kit: Improves reliability in harsh and dusty environments.
✅ Specifications
| Parameter | Specification |
|---|---|
| Model | PVG3000-24 |
| Rated Power | 3000VA / 3000W |
| Battery Voltage | 24VDC |
| Output Voltage | 230VAC ±5% |
| Waveform | Pure Sine Wave |
| Surge Power | 7000VA |
| Maximum PV Input Voltage | 500VDC |
| MPPT Voltage Range | 120V – 450VDC |
| Maximum PV Array Power | 4000W |
| Maximum Solar Charge Current | 100A |
| Maximum AC Charge Current | 80A |
| Maximum Charge Current | 100A |

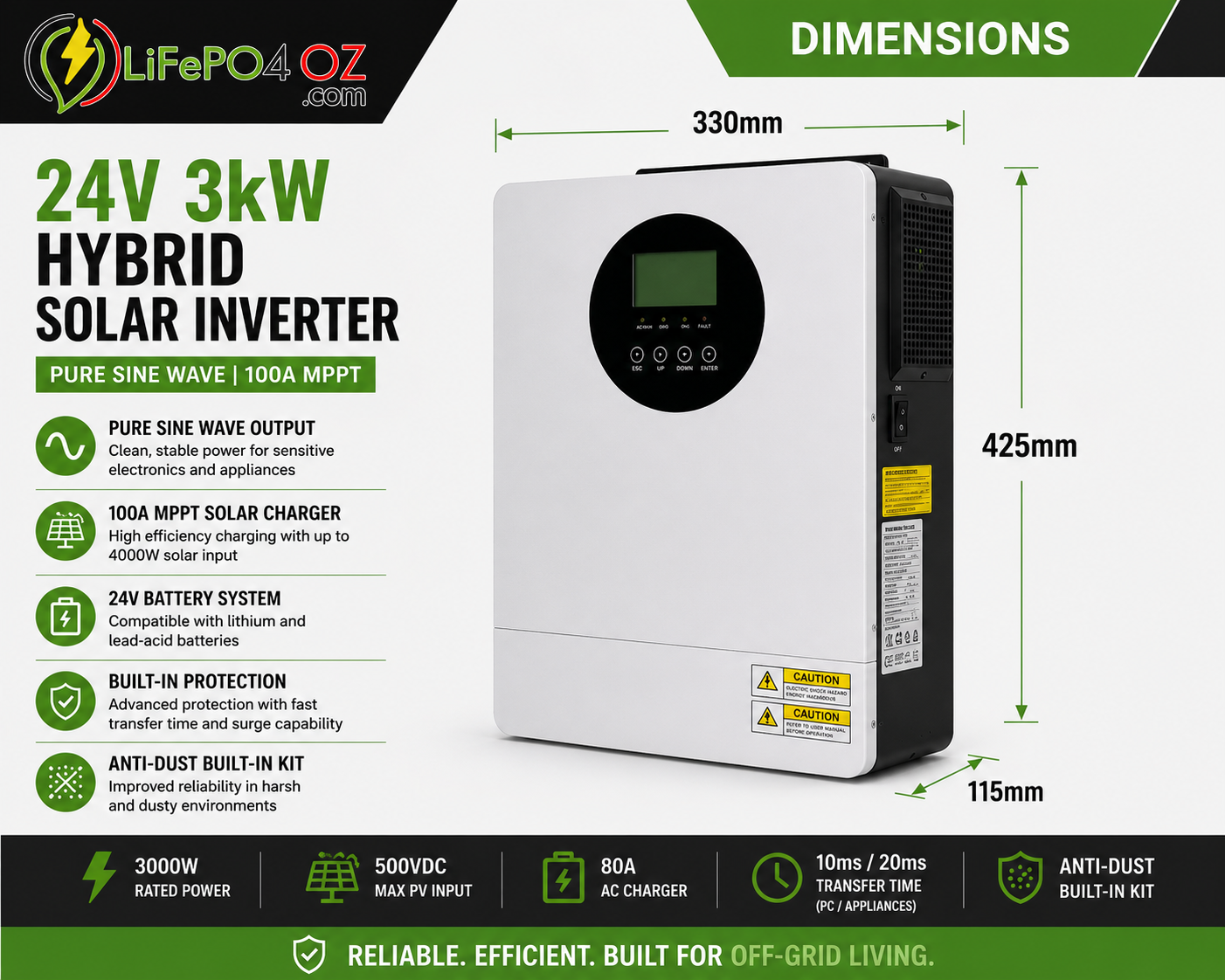

| Dimensions | 425 × 330 × 115 mm |
| Weight | 9.3 kg |
| Communication Ports | CAN / RS232 / RS485 / Dry Contact |
Reliable, efficient, and easy to install, the PVG3000-24 is an excellent choice for 24V off-grid solar systems, delivering dependable power with advanced solar charging capabilities and high-voltage PV support.
