24V 5kW Hybrid Inverter with MPPT

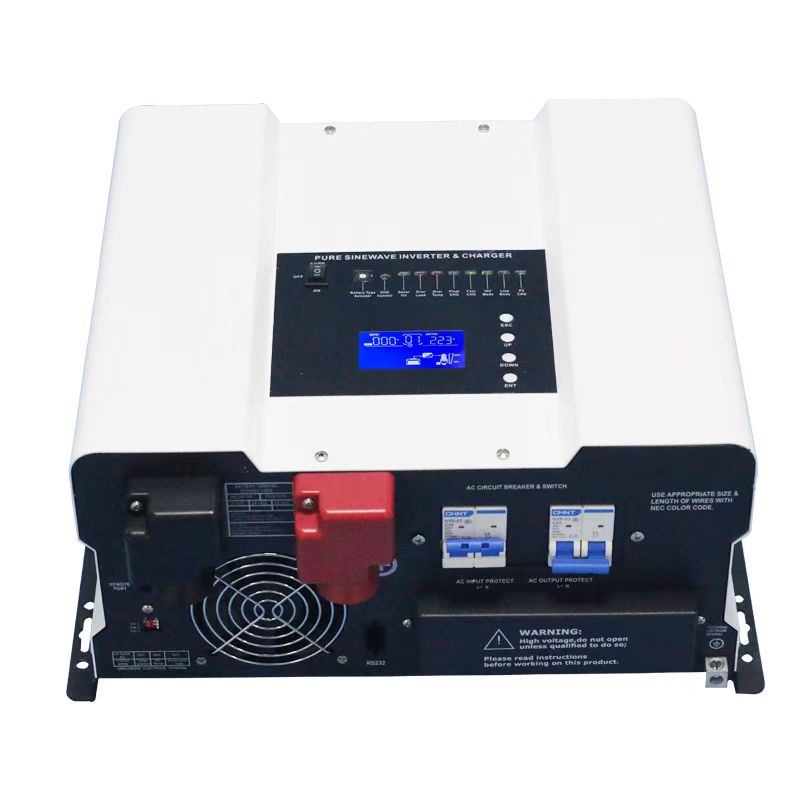

24V 5kW Hybrid Inverter with MPPT Solar Charger
Power up your off-grid or hybrid energy system with this advanced 24V 5kW Pure Sine Wave Hybrid Inverter—designed for performance, flexibility, and reliability in demanding Australian conditions.
🔧 Key Features:
- Pure Sine Wave Output: Delivers clean, stable power suitable for sensitive electronics and appliances.
- Integrated MPPT Solar Charger: Supports solar arrays up to 3400W, with intelligent 3-stage charging for maximum battery life and efficiency.
- High Surge Capability: Handles up to 15,000W surge for up to 20 seconds—ideal for starting power-hungry tools or appliances.
- Advanced Charging: Built-in 90A multistage battery charger with configurable settings for AGM, Gel, LiFePO4, Sealed, Open Lead Acid, and more.
-
Intelligent Power Management:
- Automatic transfer between battery and grid/generator (≤10ms)
- Power Saver Mode (<25W idle draw)
- Auto-restart on battery voltage recovery
- Robust Protection: Includes overload, over-temp, short circuit, high/low battery voltage, and back-feed protection.
🔌 Specifications:
- Continuous Power Output: 5,000W
- Battery Voltage: 24VDC
- AC Input: 230VAC, 50Hz
- Output Voltage: 220–240VAC ±10%
- Efficiency: >88% (Peak), >95% (Line mode)
- MPPT Range: 65V–150V DC | Max PV Input: 175V DC
- MPPT Charging: 40A
- Max Solar Input Power: 1130W
- Cooling: Intelligent fan system for heat and load management
- Mounting: Wall-mountable, rugged metal housing
📦 Applications:
- Off-grid homes and cabins
- Solar and battery backup systems
- Remote agricultural or industrial equipment
- RVs, mobile workshops, or marine systems
