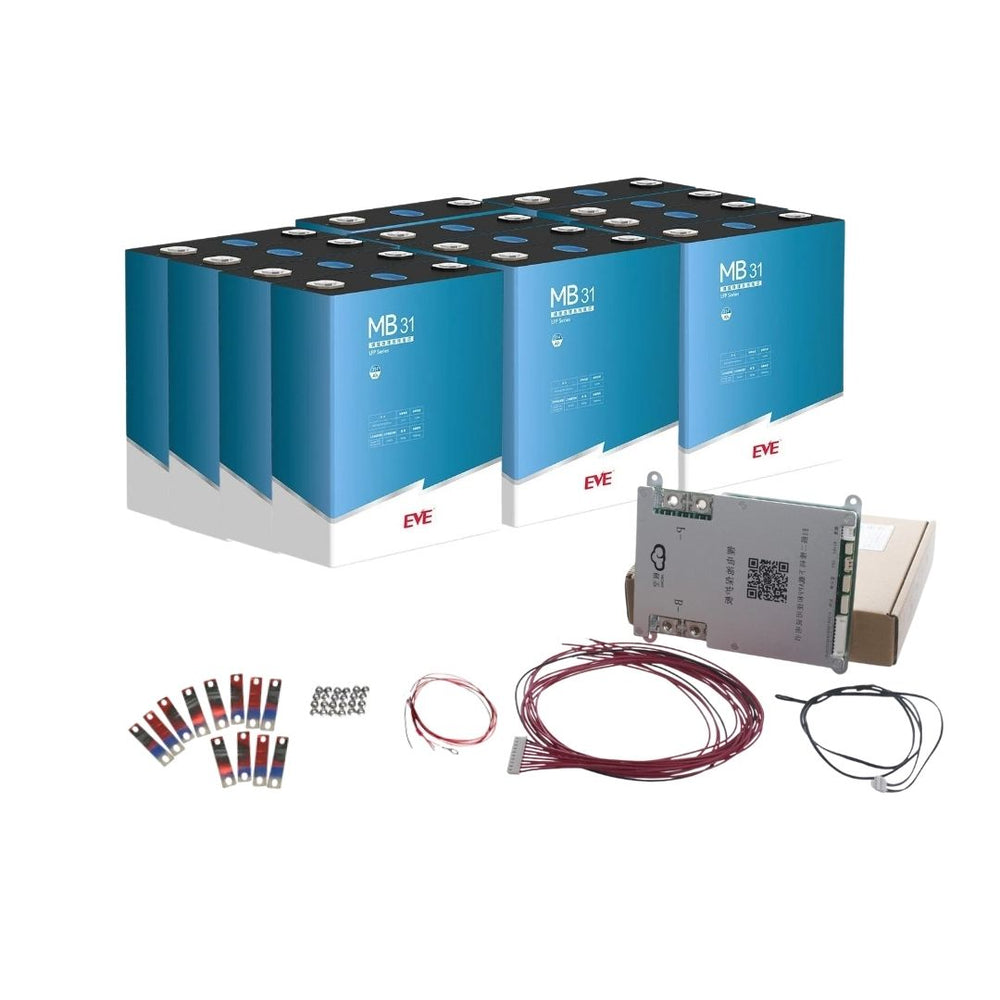

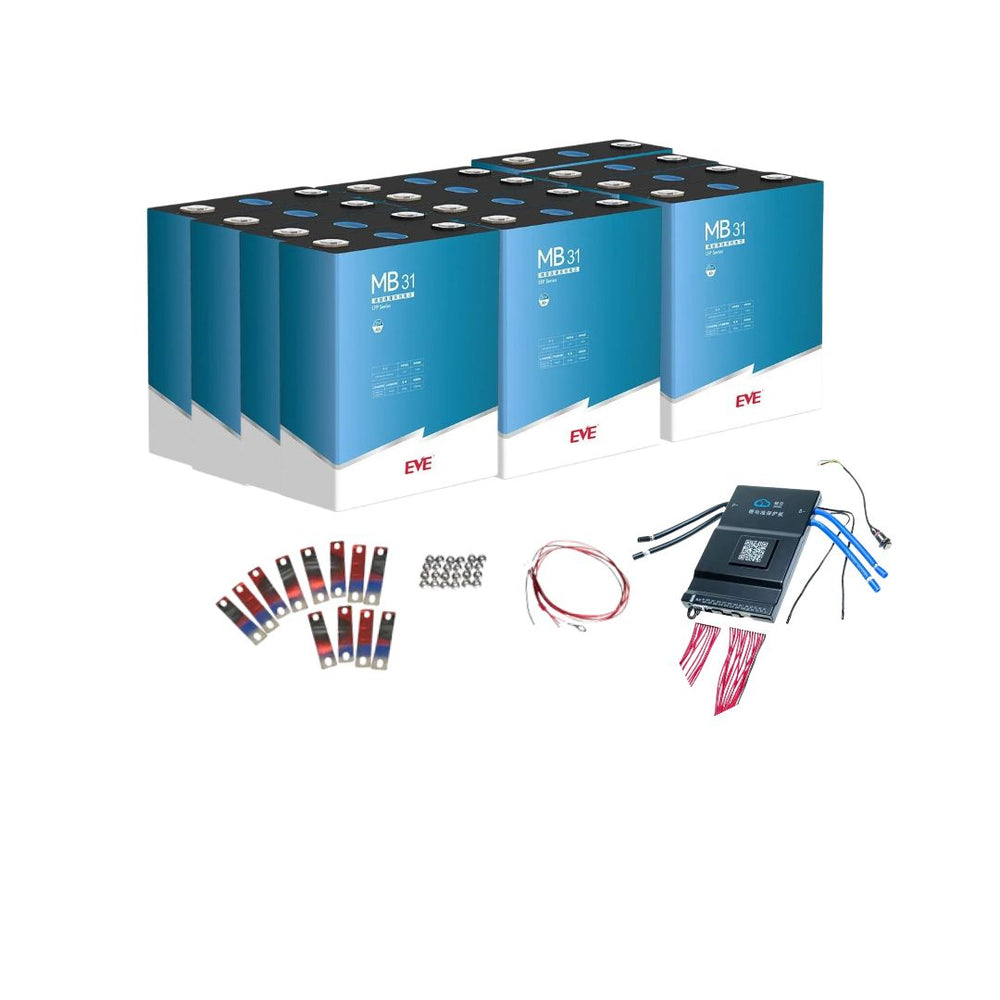

36V (38.4V) EVE MB31 314Ah 12.05kWh LiFePO4 Battery Pack Kit with 200A JK Smart BMS
5 Year Warranty on Cells
3 Year Warranty on BMS
This Battery Pack is a 36Volt (38.4V) EVE MB31 314 (Ah) Amp Hour, 12.05 (KWh) Kilo Watt Hour.
This is a kit made up of:
- 12 x 3.2v LiFePO4 EVE MB31 314ah cells
- 1 x JK BMS 8S~24S 200A
- 1 x 12S BMS balance wires
- 11 x Copper Bus Bars
- 11 x Ring Terminal Connectors
- 12 x 6M nuts
- 5A Parallel Module (Optional Extra)
- 1A Active Balancer (Optional Extra)
Total Dimensions is approximately 173.5w x 209h x 864d (mm)
Dimensions for each cell is: 173.5w x 209h x 72.0d (mm)
Total Weight: 67.2kg
Each cell is 5.6kg
These are genuine Auto Grade Eve MB31 314ah, Brand New, Matched cells. Do not be fooled by cheap recycled batteries. Buy from a local Australian Supplier with Australian backed warranty.
This kit is perfect for building your own power bank for caravans, RV's, Motorhomes or Off-Grid houses. LiFePO4 are around half the weight as AGM or Lead Acid batteries with higher charge cycles. They are also more stable than other Lithium Iron (Li-ion) batteries.
Please Note: Make sure you use a BMS (Battery Management System) with temperature sensor when connecting in series to ensure safety and longevity.
We also have 12V, 24V & 48V Packages available.
What is a Parallel Module?
What is an Active Balancer Module?
Before working with LiFePO4 cells please read our Product Safety Disclaimer
