48V EVE MB31 314Ah 16.07 kWh LiFePO4 Battery Pack Kit with 200A Smart BMS

5 Year Warranty on Cells
3 Year Warranty on BMS

This Battery Pack is a 48Volt (51.2V) EVE MB31 314 (Ah) Amp Hour, 16.07 (KWh) Kilo Watt Hour.

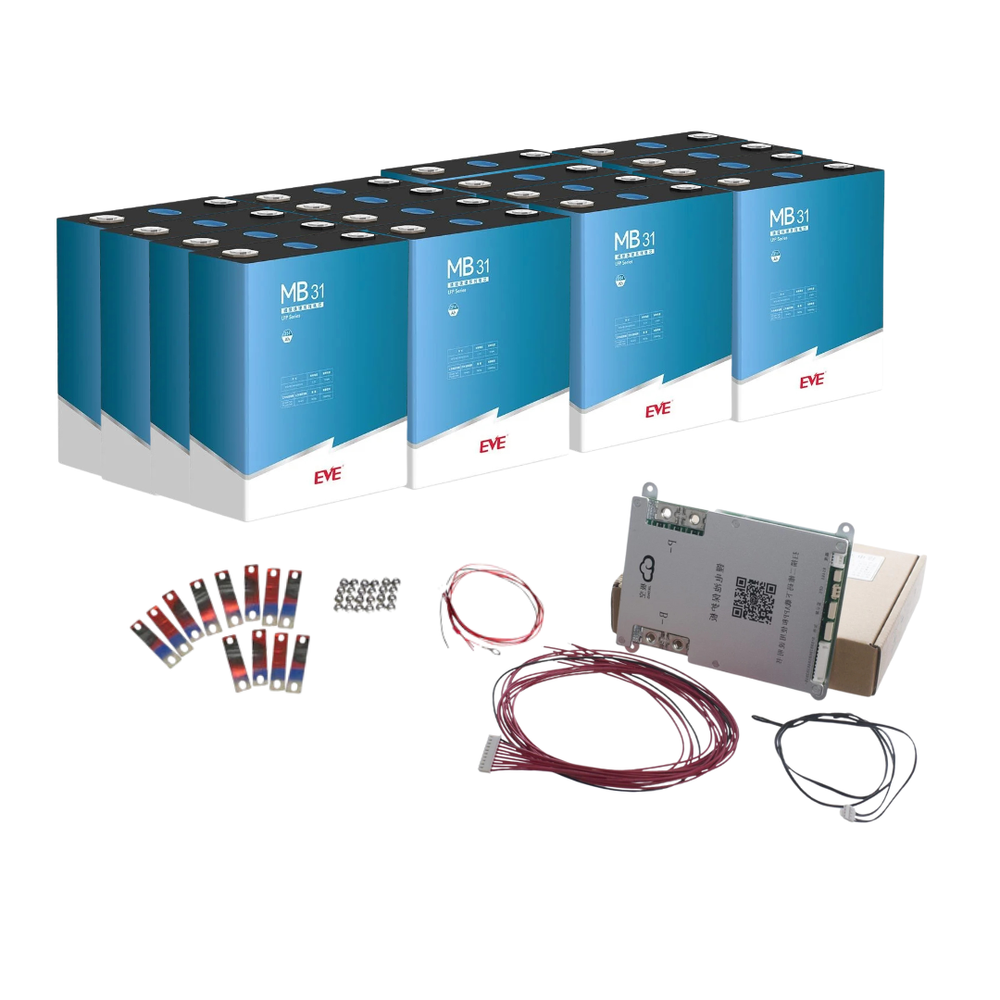

This is a kit made up of:

• 16 x 3.2v LiFePO4 EVE MB31 314ah cells (Auto Grade)
• 1 x 200Amp 16S Daly Smart BMS with RS485/CAN ports

OR

• 1 x 200Amp 8S~24S JK BMS with 2A Active Balancer

Plus:

• 1 x 16S BMS cable
• 12 x Copper Bus Bars
• 32 x 6M nuts

Extras:

• 5A Parallel Module (Optional Extra for Daly BMS)
• 1A Active Balancer (Optional Extra for Daly BMS)
• 5A Heltec Active Balancer (Optional Extra for Daly & JK BMS)

Total Dimensions is approximately 173.5w x 209h x 1152d (mm)
Dimensions for each cell is: 173.5w x 209h x 72.0d (mm)

Total Weight: 91kg
Each cell is 5.6 kg

These are Brand New Automotive Grade (Grade A) matched cells. Do not be fooled by cheap recycled cells.

This kit is perfect for building your own power bank for caravans, RV's, Motorhomes or even if you want to build an electric vehicle.  LiFePO4 are approximately half the weight as AGM or Lead Acid batteries with over 6 times more charge cycles.  They are also more stable than other Lithium Iron (Li-ion) batteries.

Please Note: Make sure you use a BMS (Battery Management System) with temperature sensor when connecting in series to ensure safety and longevity.

We also have 12V, 24V & 36V Batteries and BMS packages available.

What is a Parallel Module?

What is an Active Balancer Module?

Before working with LiFePO4 cells please read our Product Safety Disclaimer
