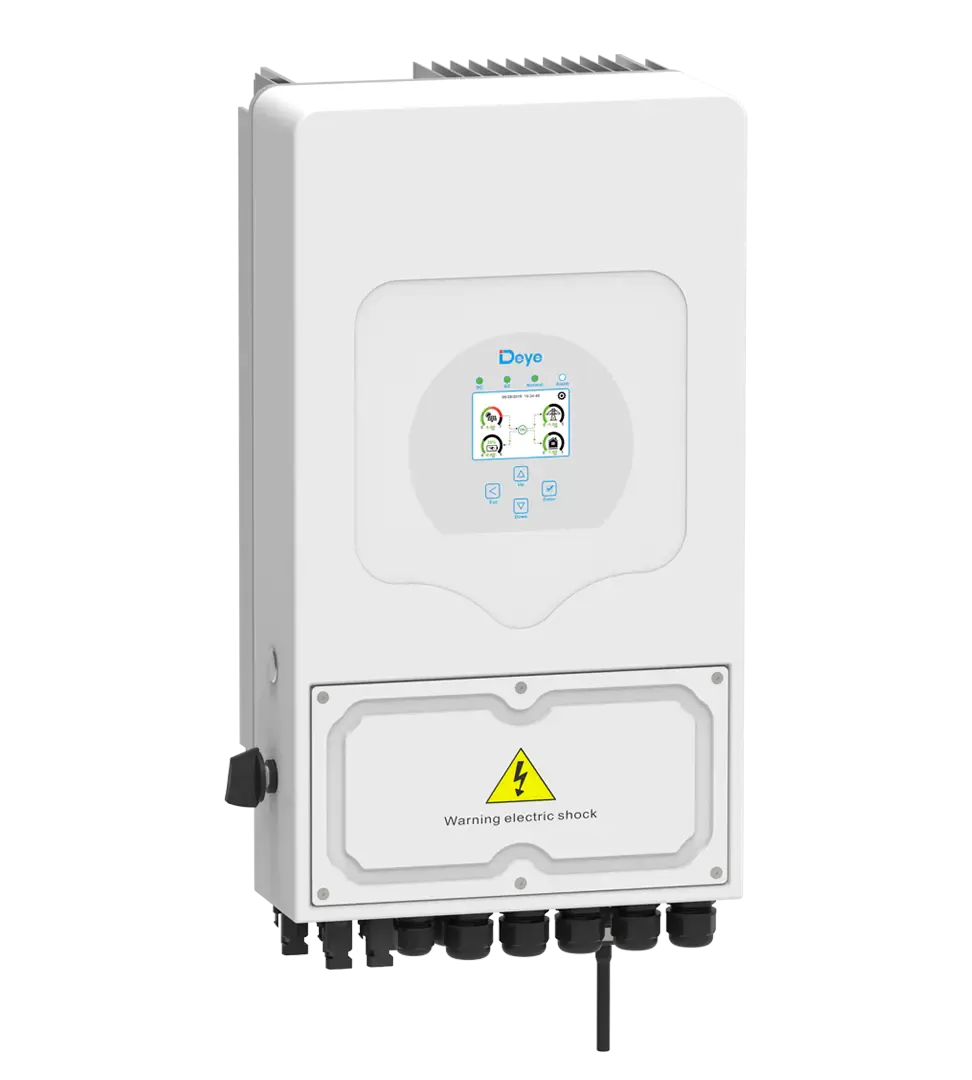

Deye 8kW Single Phase Hybrid Inverter SUN-8K-SG05LP1-AU

The Deye 8kW Single Phase Hybrid Inverter SUN-8K-SG05LP1-AU is a highly efficient solar inverter designed to maximise the energy output of medium-sized residential and small commercial solar power systems. By converting the direct current (DC) generated by solar panels into alternating current (AC), it ensures that energy can be effectively used or fed back into the grid with minimal loss.

Applications:

  • Perfect for residential installations, suiting households looking to reduce electricity bills and carbon footprints.
  • Ideal for small commercial properties needing reliable and efficient solar power solutions.
  • Supports hybrid solar systems, allowing both grid-tied and off-grid functionalities.

Benefits and Features:

  • High Efficiency: With a conversion efficiency of up to 98.4%, it ensures maximum energy harvest from your solar panels.
  • Flexible Installation: Compact design allows for versatile installation options, whether indoors or outdoors.
  • Smart Monitoring: Equipped with intelligent monitoring capabilities via integrated Wi-Fi, allowing users to track energy production and system performance in real-time.
  • Safety First: Built-in safety features include over-voltage, short-circuit, and over-temperature protection, ensuring long-term performance and reliability.
  • Quiet Operation: Designed to operate with low noise levels, making it suitable for residential environments.

Dimensions and Weight:

  • Dimensions: 789*490*357
  • Weight: 25kg

Efficiency:

Max Efficiency
97.60%
Euro Efficiency
96.50%
MPPT Efficiency
99.90%



Interface:

  • Display: LCD screen for on-site system information.
  • Connectivity: Integrated Wi-Fi and optional RS485/ethernet ports for remote monitoring.
  • User-Friendly Interface: Simple and intuitive controls, accessible via mobile app or web portal.
    Communication Interface
    RS485/RS232/CAN
    Monitor Mode
    GPRS/WIFI/Bluetooth/4G/LAN(optional)

General Data:

  • Rated Power Output: 8kW
  • Topology: Transformerless for improved efficiency and lighter weight.
  • Cooling Method: Natural convection, promoting silent operation without the need for fans.
  • Environmental Rating: IP65, suitable for outdoor installation under various environmental conditions.

AC Output Data:

  • Nominal AC Output Power: 8kW
    Rated AC Output Active Power (W)
    8000
    Max AC Output Active Power (W)
    8000
    AC Output Rated Current (A)
    34.8
    Max AC Output Current（A）
    34.8
    Max Continuous AC Pass through （A）
    50
    Peak Power (off grid)
    2 time of rated power, 10 S
    Power Factor Adjustment Range
    0.8 leading to 0.8 lagging
    Rated Input/Output Voltage/Range (V)
    230 /240 0.85Un-1.1Un
    Rated Input/Output Grid Frequency/Range
    50Hz/45Hz-55Hz
    Grid Connection Form
    L+N+PE
    Total Harmonics Current Distortion (THDi)

    DC Current Injection
  • AC Output Frequency: 50/60Hz
  • Total Harmonic Distortion (THD): < 3%

PV String Input Data:

Max. DC Input Power (W)
12000
Rated PV Input Voltage (V)
500
Start-up Voltage（V）
125
MPPT Voltage Range（V）
150-425
Rated DC Input Voltage(V)
370
Max. Operating PV Input Current (A)
26+26
Max. Input Short-Circuit Current (A)
34+34
No. of MPP Trackers/

No. of Strings MPP Tracker



Battery Input Data:

Battery Type
Lead-acid or Lithium-ion
Battery Voltage Range(V)
40-60
Max.Charging Current(A)
190
Max.Discharging Current(A)
190
Charging Strategy for Li-Ion Battery
Self-adaption to BMS
Number of Battery Input
1



Protection

Integrated
DC Polarity Reverse Connection Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Overvoltage Load Drop Protection, Ground Fault Current Monitoring, Arc Fault Circuit Interrupter (optional), Power Network Monitoring, Island Protection Monitoring, Earth Fault Detection, DC Input Switch, DC Terminal Insulation Impedance Monitoring, Residual Current (RCD) Detection, Surge protection level
Over Voltage Category
TYPE II(DC), TYPE II(AC)



Embrace sustainable energy solutions with the Deye 8kW Single Phase Hybrid Inverter SUN-8K-SG05LP1-AU, offering reliability, high performance, and advanced features to meet the power needs of modern homes and businesses. Whether you're looking to reduce utility costs or move towards a more eco-friendly lifestyle, this inverter is the ideal choice for your solar power system.
