100A MPPT Solar Charge Controller – 12V 24V 48V

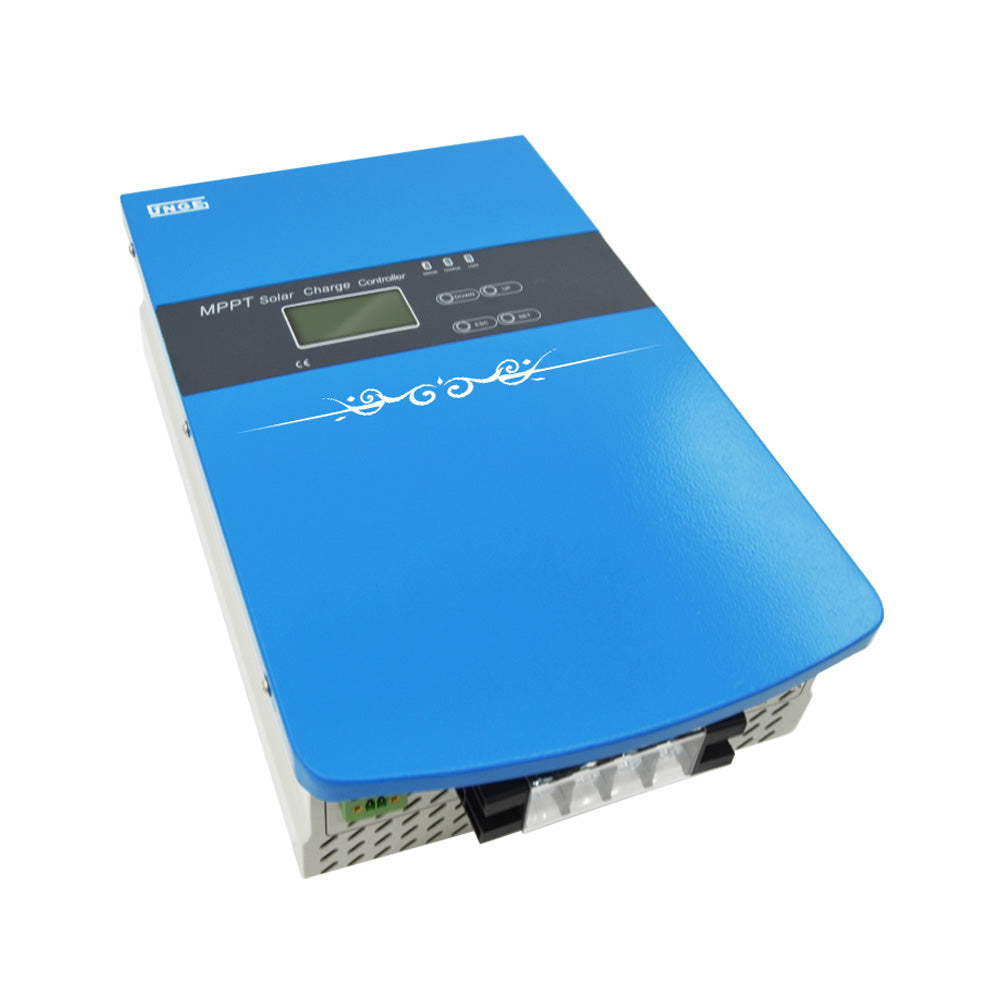

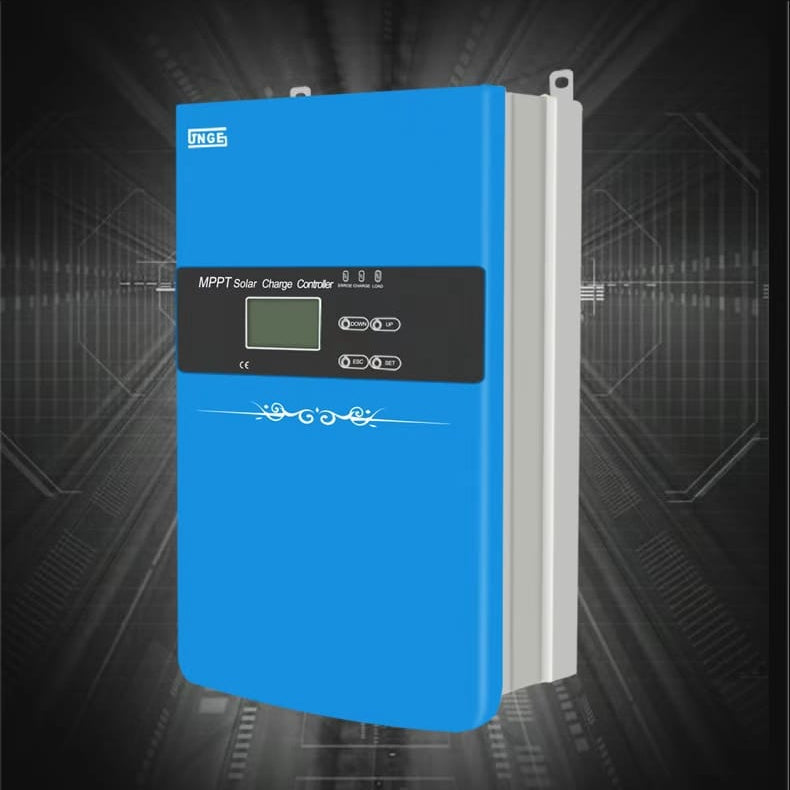

100A MPPT Solar Charge Controller – 12V / 24V / 48V LiFePO4
Need serious solar charging capacity for a larger battery bank? Our 100A MPPT Solar Charge Controller is designed for high-power off-grid solar systems using 12V, 24V or 48V battery banks.
With up to 100A charging current, advanced MPPT tracking efficiency of more than 99.5%, and support for solar arrays up to 4800W on a 48V system, this controller is well suited to off-grid homes, sheds, cabins, workshops, farms, communications systems and larger standalone solar installations.
The controller supports configurable charging parameters for LiFePO₄, lithium and lead-acid battery systems, making it a flexible option when building or upgrading an off-grid power system.
Browse our full range of Solar Charge Controllers, LiFePO₄ Battery Kits, DC-DC Chargers and Off-Grid Kits to build a complete solar and battery system.
☀️ High-Power MPPT Solar Charging
MPPT technology continuously tracks the solar array's maximum power point to make better use of the available solar energy. This controller offers an MPPT tracking efficiency of greater than 99.5% and maximum power conversion efficiency of greater than 98%.
Maximum recommended PV input power depends on your battery system voltage:
- 12V battery system: up to 1200W solar
- 24V battery system: up to 2400W solar
- 48V battery system: up to 4800W solar
⚡ Important PV Voltage Limits
The allowable solar array open-circuit voltage (Voc) changes depending on the battery system voltage. The following limits must be observed when designing your solar array:
| Battery System | PV Open-Circuit Voltage Range | Maximum PV Power |
| 12V | 20V–100V | 1200W |
| 24V | 40V–145V | 2400W |
| 48V | 80V–145V | 4800W |
Important: Do not exceed the applicable PV open-circuit voltage range for your battery system. Excessive PV voltage may damage the controller.
🔋 LiFePO4 & Lithium Battery Compatibility
The controller provides configurable battery charging parameters for LiFePO4, lithium and lead-acid batteries. The controller defaults to lead-acid settings, so the correct battery type and charging parameters must be selected before connecting and charging a lithium or LiFePO4 battery bank.
Always ensure the charging settings are suitable for the specifications provided by your battery manufacturer.
📱 Monitoring & Communication

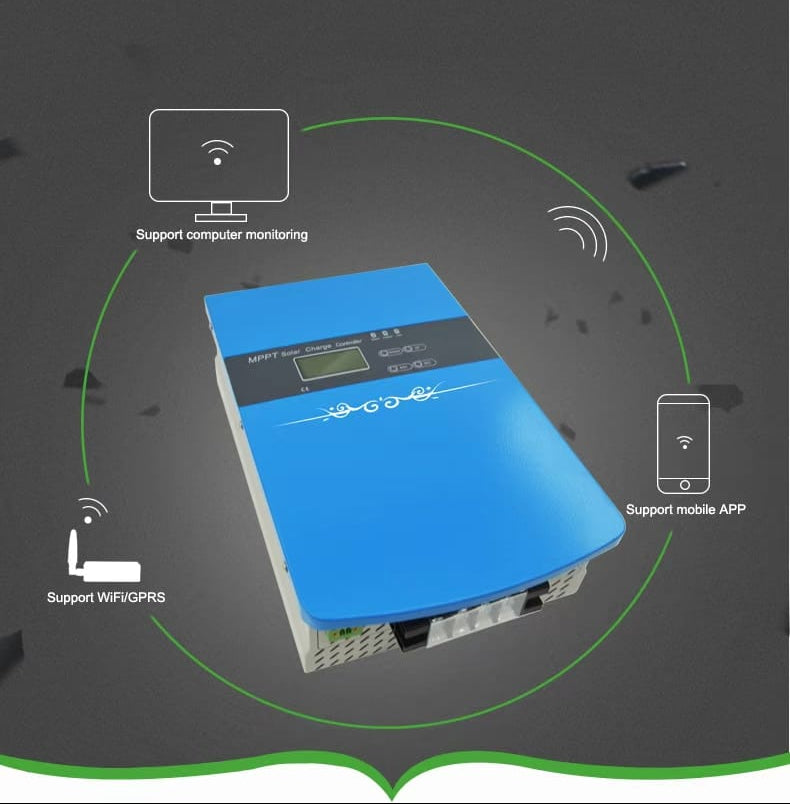

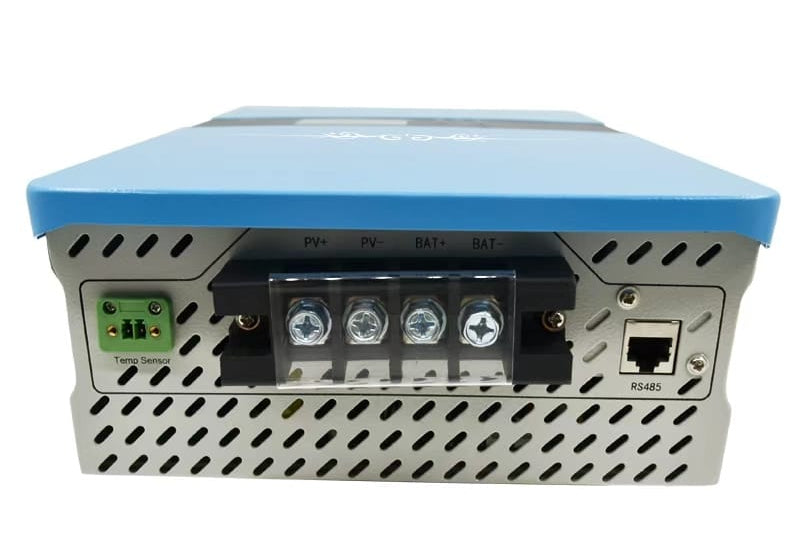

An integrated RS485 communication port allows the controller to be connected to supported monitoring equipment. Optional accessories can provide PC monitoring or Wi-Fi/GPRS-based app monitoring.
- RS485 communication
- Optional PC monitoring
- Optional Wi-Fi monitoring module
- Optional GPRS monitoring module
- External battery temperature sensing
Please note: Wi-Fi and GPRS monitoring hardware is optional unless specifically included with the product.
🛡️ Built-In Protection
The controller incorporates multiple protection functions to help safeguard the solar charging system, including:
- PV over-voltage protection
- Battery reverse-polarity protection
- Battery over-voltage protection
- Battery over-discharge protection
- Charging over-current protection
- Equipment over-temperature protection
- Night-time reverse-current protection
🔧 Specifications
| Model | JN-MPPT-CL 100A |
| Rated Charging Current | 100A |
| Maximum Charging Current | 100A |
| Battery System Voltage | 12V / 24V / 48V automatic identification |
| 12V System Identification Range | DC 9V–16V |
| 24V System Identification Range | DC 18V–32V |
| 48V System Identification Range | DC 42V–60V |
| Maximum PV Power – 12V | 1200W |
| Maximum PV Power – 24V | 2400W |
| Maximum PV Power – 48V | 4800W |
| PV Voltage Range – 12V System | 20V–100V Voc |
| PV Voltage Range – 24V System | 40V–145V Voc |
| PV Voltage Range – 48V System | 80V–145V Voc |
| MPPT Tracking Efficiency | >99.5% |
| Maximum Conversion Efficiency | >98% |
| Full-Load Efficiency | Up to 97% |
| Charging Method | 3-stage MPPT / Boost / Float |
| Battery Compatibility | Lead-acid, lithium and LiFePO₄ with configurable charging parameters |

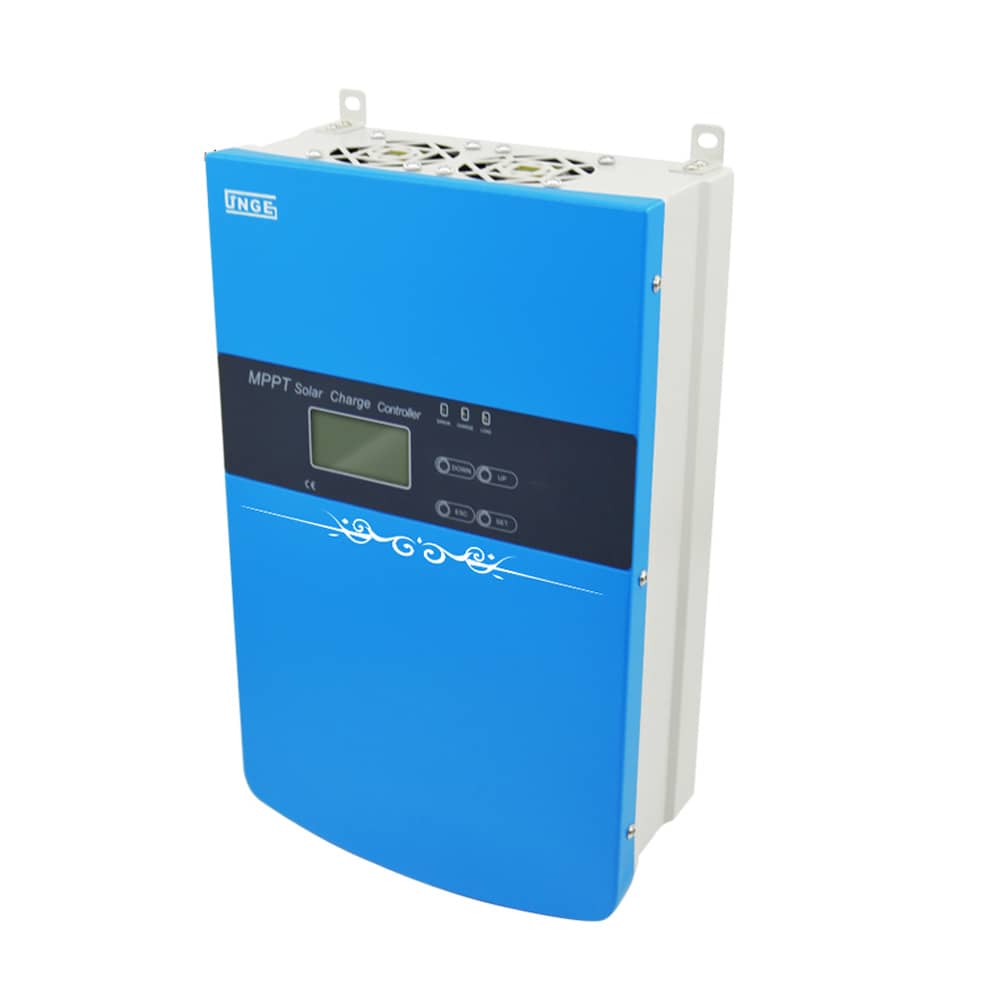

| Display | LCD segment display with SET, ESC, UP and DOWN controls |
| Communication | RS485; optional Wi-Fi / GPRS monitoring |
| Battery Temperature Sensor | External temperature probe supported |
| DC Load Output | |
| Operating Temperature | -20°C to +50°C |
| Storage Temperature | -30°C to +70°C |
| Humidity | 10%–90% |
| Protection Rating | IP30 |
| Dimensions | 340 × 208 × 95mm |
| Weight | 3.6kg |
| Recommended Copper Cable Size at 100A | 20mm² / AWG 4 minimum as specified by manufacturer |
⚠️ Installation Notes
This is a high-current solar charge controller and must be installed correctly. The manufacturer specifies that installation should be carried out by a suitably qualified technician and that appropriate cable sizing, circuit protection, grounding and secure electrical connections must be used.
The controller should be installed upright in a clean, dry and well-ventilated location, protected from direct sunlight and water. The IP30 rating means this controller is not designed for direct outdoor exposure.
If an inverter is being used, connect the inverter directly to the battery bank rather than to the controller.
📦 Monitoring Options
Depending on the configuration purchased, optional accessories are available for:
- RJ45 to USB PC communication
- RJ45 to Wi-Fi monitoring
- RJ45 to GPRS monitoring
Warranty
2-year warranty from the date of sale, subject to correct installation and operation in accordance with the supplied instructions.
For product manuals, setup information and supporting documentation, visit our Documents & Videos section.
