12V Triple Charger - AC-DC-DC charger with MPPT - 30A

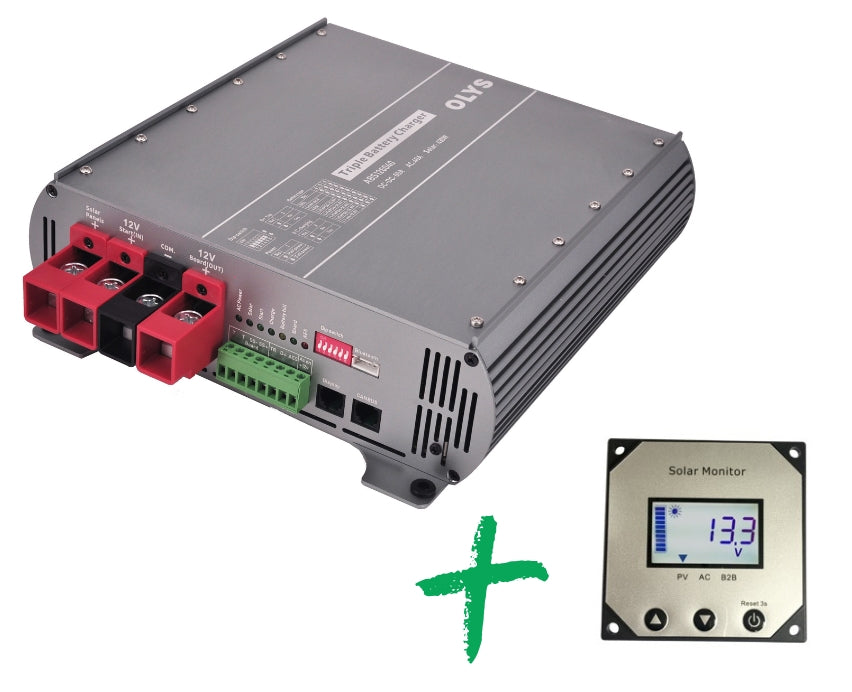

12V Triple Charger - AC-DC-DC with MPPT (Model: ABS123020)
The Ultimate Multi-Source 12V Battery Charger for Off-Grid and Mobile Applications
The ABS123020 12V Triple Charger is a revolutionary, all-in-one charging solution designed for off-grid, RV, camper, and marine applications. Unlike any other dc dc charger on the market, this versatile 30A system integrates three independent charging sources—vehicle alternator (DC-DC), AC mains (AC-DC), and solar panels (MPPT)—ensuring uninterrupted power for your 12V LiFePO4, AGM, Gel, or lead-acid battery systems.
Key Features & Benefits:
- Triple Charging Sources – Charge your 12V battery from a 240V AC input, vehicle alternator (DC-DC), or solar panel input (MPPT) for ultimate reliability.
- 30A DC-DC Charging – Efficiently charges your house battery from your vehicle’s alternator while driving, with smart voltage regulation to prevent over-discharging.
- 20A AC-DC Charging – Plug into standard 110V-240V AC mains for reliable charging when grid power is available.
- 250W MPPT Solar Charging – Integrated MPPT solar controller optimizes charging efficiency from solar panels, making it ideal for off-grid and mobile applications.
- Lithium & Lead-Acid Compatible – Selectable charging profiles for LiFePO4, AGM, Gel, and Lead-Acid batteries, ensuring safe and efficient charging.
- Temperature & Voltage Monitoring – Smart charging with temperature sensors (optional) to optimize battery life and performance.
- Intelligent Battery Maintenance – Float and absorption charging stages to maximize battery lifespan.
- Bluetooth & CANBUS Connectivity – Monitor and configure settings via optional Bluetooth module or CANBUS system integration.
- Compact & Durable Design – Built for rugged conditions with high-efficiency cooling and protection against overheating, overcharging, and short circuits.
Who Is It For?
- 4WD, RV & Caravan Owners – Stay powered up wherever you go with vehicle alternator, solar, and mains charging flexibility.
- Off-Grid & Remote Power Users – Reliable battery charging in off-grid cabins, remote workstations, or solar-powered setups.
- Marine & Boating Enthusiasts – Ensure continuous power on boats with a multi-source charging solution.
- Emergency Backup Power – Keep batteries charged and ready for blackouts, camping trips, or disaster preparedness.
Why Choose the ABS123020?
With no direct competitors on the market, the ABS123020 Triple Charger stands alone as a one-of-a-kind charging solution for serious off-grid and mobile power users. Whether you’re driving, docked, or in the wild, this smart charger keeps your 12V battery fully powered—anytime, anywhere.
Technical Specifications
| Feature | ABS123020 |
|---|---|
| Input Voltage (DC-DC Charging) | 10.5V - 16V |
| DC-DC Charging Current | 30A |
| AC Input Voltage Range | 90V - 270V AC (50/60Hz) |
| AC-DC Charging Current | 20A |
| AC Charging Power | 260W |
| Solar Input Power (MPPT) | 250W |
| Solar Charge Controller Type | MPPT |
| Max. PV Open Circuit Voltage | 50V |
| Max. Solar Charging Current | 15A |
| Battery Compatibility | LiFePO4 (13.9V-14.6V), AGM, GEL, Lead-Acid |
| Battery Bank Voltage | 12V |
| Recommended Battery Capacity | 45Ah - 280Ah |
| Charge Stages | Boost, Absorption, Float |
| Charging Protection Features | Overvoltage, Overcurrent, Overheat, Reverse Polarity, Short Circuit |
| Start Battery Trickle Charge | 0 - 5A |
| Bluetooth & CANBUS | Optional Bluetooth module & CANBUS for remote monitoring |
| Temperature Compensation | -3mV/°C/2V (for Lead-Acid only) |
| Cooling | Active cooling fan |
| Operating Temperature Range | -20°C to 50°C |
| Self-Consumption (Idle Mode) | 28mA |
| Dimensions (L x W x H) | 285mm x 234mm x 74mm |
| Weight | 2kg |
| Mounting & Installation | Wall or panel mount with 20cm clearance for cooling |
🚀 Power Your Adventure with the ABS123020 – The Smartest 12V Triple Charger Available! 🚀
See the Triple Charger User Manual here: User Manual
