500+
Kits Sold Across Australia
4.8★
Average Customer Rating
3,000+
Battery Charge Cycles
10yr+
Expected Battery Lifespan
Battery Sizing Guide

Which Size Is Right for You?

Choose based on how you travel and what you need to power.

2.56kWh
(100Ah)
🚤 Yacht Weekends
Weekend sailing or cabin stays. Fridge, lights, navigation.
3.33kWh
(130Ah)
🌄 Short Getaways
Large caravan or houseboat. Fridge, lights, laptop, TV.
5.89kWh
(230Ah)
🚐 Extended Travel
Our #1 seller. Motorhome or liveaboard. All appliances comfortably.
7.17kWh
(280Ah)
🏠 Full-Time Nomads
Motorhome or tiny home. A/C, washer, everything with margin.
8.04kWh
(314Ah)
⚡ Max Capacity
Large motorhome or property. Multiple heavy loads.
Power Everything

What Can This Kit Run?

With a 5000W pure sine wave inverter, you can power real household appliances.

🧊
12V Fridge
~50W
✓ 24/7
Coffee Machine
~800-1200W
✓ Daily
🍳
Air Fryer
~1200-1800W
✓ Full meals
💻
Laptop
~60-100W
✓ All day
📺
TV / Streaming
~60-120W
✓ Movie night
🔌
Power Tools
~500-1500W
✓ Workshop
💡
LED Lights
~10-30W
✓ All night
📱
Phones
~10-20W
✓ Always
❄️
Small A/C
~1200-1500W
✓ With 5kW inverter
🔥
Microwave
~700-1200W
✓ Quick meals
🌊
Washing Machine
~500W
✓ Per load
💨
Hair Dryer
~2000W
✓ With 5kW
Complete Kit

Everything You Need - Nothing Extra to Buy

Every component to go off-grid.

5000W Hybrid Inverter

Pure sine wave, built-in 60A MPPT, AC charger & UPS.

☀️

4 × 440W Jinko Solar Panels

1760W total. Tier-1, 25-year warranty.

🔋

LiFePO4 Battery Kit

Genuine EVE cells, JK Smart BMS Bluetooth, bus bars & case.

🔌

All Cabling & Connectors

10m solar cable, MC4, pre-cut inverter cables, lugs.

🛡️

250A Circuit Breaker

Waterproof safety breaker for your system.

📋

Wiring Diagrams & Support

Installation guide + QLD phone support.

Physical Specs

Dimensions & Weight

Make sure everything fits your motorhome before you order.

5kW Inverter
455 x 330 x 177mm
~18kg
☀️
440W Panel (each)
1903 x 1134 x 30mm
~23kg each
🔋
Battery (assembled)
Varies by Ah - fits under seat/boot
100Ah ~14kg / 280Ah ~38kg
📏
Roof Space Needed
4 panels = ~4.3m x 2.3m
Fits motorhome & large caravan roofs
Flexible Charging

4 Ways to Keep Your Batteries Full

Never worry about running flat.

☀️

Solar Panels

1760W Jinko panels charge during the day.

🔌

Mains / Shore Power

Caravan park, marina or home power point.

🔧

Generator

Cloudy day backup with auto switchover.

🚗

Vehicle Alternator

DC-DC charges while you drive.

Installation

How Easy Is It to Set Up?

Most customers complete installation in a single day.

01

Assemble Battery

EVE cells in case, attach JK BMS, connect bus bars.

1-2 hours
02

Mount Inverter

Secure 5kW inverter in your motorhome, caravan or vessel.

~1 hour
03

Install Panels

Jinko panels on your roof or deck. Cable to MPPT.

~2 hours
04

Connect & Go

Power on, pair BMS Bluetooth, monitor from phone.

~30 mins
Full Details

Description & Specifications

Everything you need to know — components, specs, warranty and support.

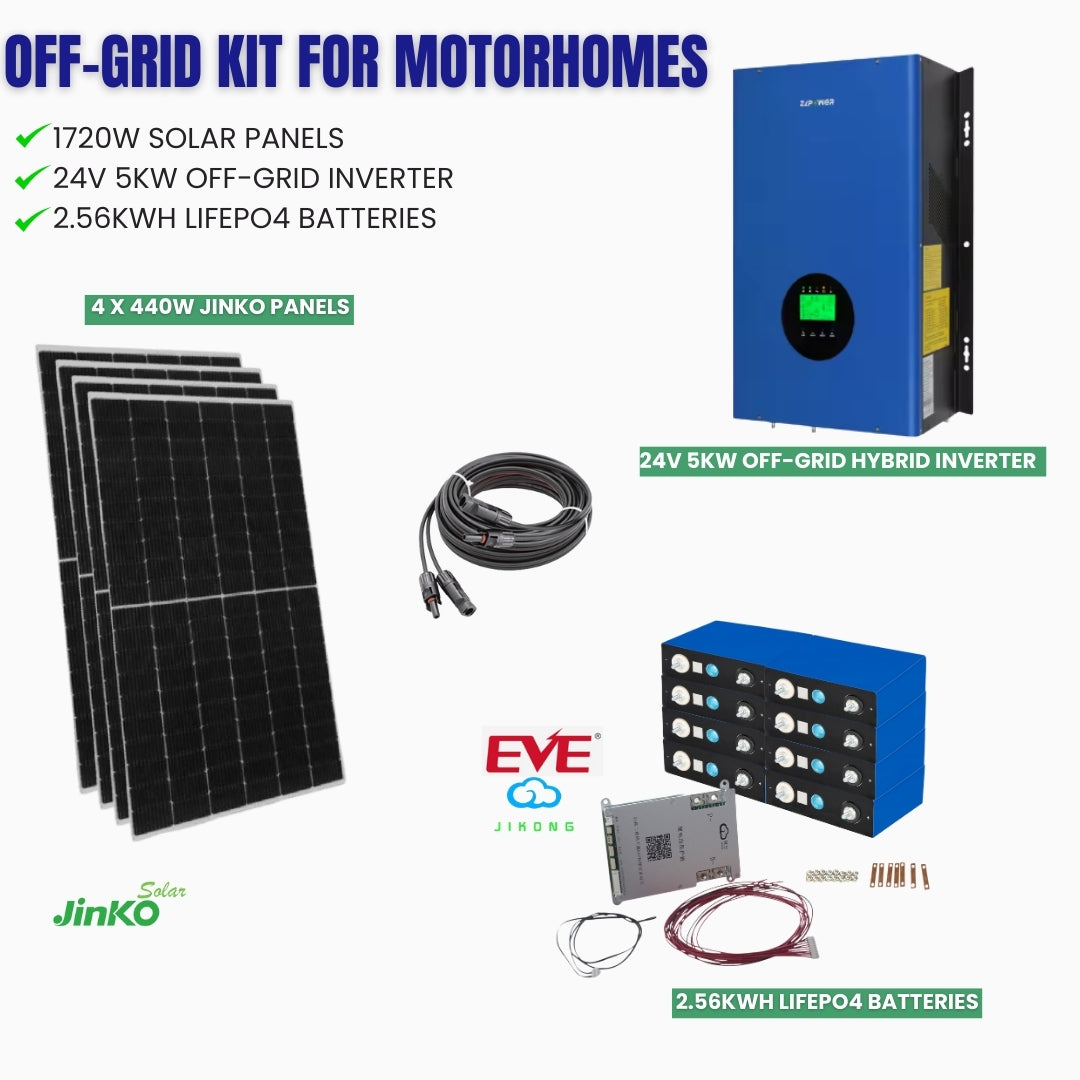

24V Off-Grid Power Kit ideal for Motorhomes, Large Caravans, or Yachts

This 24V off-grid power kit is built for motorhomes, large caravans, yachts, and full-time off-grid setups that require consistent and high-output energy. It runs fridges, lights, and essential appliances daily without relying on grid power. Designed for Australian conditions, it delivers stable performance for both mobile travel and remote living.

If you're travelling full-time, living off-grid, or exploring the open sea, our 24V Mobile Off-Grid Kit is built for serious energy demands and long-term independence. This complete solution is perfect for motorhomes, large caravans, yachts, houseboats, or tiny homes

At the heart of the system is a high-output 5kW 24V low-frequency pure sine wave hybrid inverter with a built-in 60A MPPT solar charge controller. Whether you're powering air fryers, washing machines, laptops, or even small air conditioners, this inverter handles it all — and automatically switches between solar, battery, generator, or mains input for uninterrupted operation.

The kit includes 4 x 440W Jinko Solar Panels (1760W total), providing fast solar charging even in shaded or low-light conditions. You’ll also receive a 24V LiFePO4 Battery Kit (100Ah–280Ah) made with genuine EVE cells, housed in a durable 24V case and managed by a JK SMART BMS with Bluetooth for real-time monitoring.

To keep you powered while driving or cruising, a powerful 24V 50A DC-DC charger is included — ideal for alternator charging from your tow vehicle or vessel engine.

Whether you’re exploring remote locations or living off-grid year-round, this 24V system delivers powerful, clean, and efficient energy — ready for wherever you roam.

The system includes:

  • 4 x 440W Jinko Solar Panels for efficient charging
  • 24V LiFePO4 Battery Kit (100Ah–280Ah) with JK SMART BMS
  • Bluetooth monitoring for real-time performance tracking
  • 24V 50A DC-DC charger for charging while driving

Flexible, Expandable & Built to Last

This system is designed to grow with your needs, offering long battery life, stable output, and flexible expansion options.

  • 4000+ cycle LiFePO4 battery
  • Expandable storage capacity
  • Reliable performance in real-world conditions

Important: All electrical work must be carried out by a suitably trained and qualified person. Battery installation and usage must comply with our Product Safety Guidelines. Improper installation may lead to safety hazards or void warranty.

Battery

Chemistry
LiFePO4
Capacity
100Ah
Cycle Life
5000 cycles
Depth of Discharge
80%

Cells

Cell Brand
EVE
Cell Model
LF100LA

BMS

BMS Included
Yes
BMS Brand
JK
Active Balancer
Yes
Bluetooth
Yes

Certifications

IEC 62619 Certified
No
CEC Approved
No

Installation & Warranty

Installation Type
DIY+ Electrician
Installation Difficulty
Intermediate
Compatibility Notes
Jinko solar panels

We have a 30-day return policy if the item is damaged or is not as described, which means you have 30 days after receiving your item to request a return.

To be eligible for a return, your item must be in the same condition that you received it, unused, with tags, and in its original packaging. You’ll also need the receipt or proof of purchase.

To start a return, you can contact us at sales@lifepo4oz.com. If your return is accepted, we’ll provide instructions on how and where to send your package. Items sent back to us without first requesting a return will not be accepted.

You can always contact us for any return question at sales@lifepo4oz.com.

If you change your mind, you may be eligible for a return, however the items must be unused and in their original packaging. Once returned to us, we will inspect the goods and, if approved, a 20% restocking fee will apply.


Damages and issues
If you receive any items which appear to be damaged, do not attempt to use them. Please inspect your order upon receipt and contact us immediately if the item is defective, damaged, or if you receive the wrong item, so that we can evaluate the issue and make it right.


Products damaged in transit
If you receive a shipment that has been damaged in transit, a replacement or refund may be provided, subject to the following conditions:

  • The return or damage claim must be made within 24 hours of receiving the shipment.
  • All shipments must be inspected for damage during the unloading process.
  • Clear photos of the damaged packaging and damaged product must be provided as evidence.
  • Photos must be taken during the unloading process.
  • Photos must clearly show all damage and, where possible, the likely cause of the damage.
  • The total approved claim value, including freight costs, will be credited to your account.

Exceptions / non-returnable items
We do not accept returns for hazardous materials, flammable liquids, or gases. Please get in touch if you have questions or concerns about your specific item.


Exchanges
The fastest way to ensure you get what you want is to return the item you have, and once the return is accepted, make a separate purchase for the new item. A 20% restocking fee will apply.


Refunds
We will notify you once we’ve received and inspected your return, and let you know if the refund was approved or not. If approved, you’ll be automatically refunded to your original payment method. Please remember it can take some time for your bank or credit card company to process and post the refund.

All orders will be safely packed and shipped within 1 day.  All products are shipped via Road Freight only.

All efforts are made to ensure the products safe during transport, however if you receive an item which looks like it may have been damaged during tranport you must take a photo before trying to use the product.

Common Questions

Frequently Asked Questions

Who is this 24V off-grid power kit designed for?

This kit is designed for motorhomes, large caravans, yachts, houseboats, tiny homes and full-time off-grid setups with higher power demands.

Is this system suitable for full-time off-grid living?

Yes. It is built for regular off-grid use, with a 5kW inverter, 1760W of solar and battery options from 100Ah to 280Ah. The right battery capacity will depend on your daily power use.

Can I run several appliances at the same time?

Yes, provided the combined running load and startup demand remain within the inverter’s 5kW capacity. It can support appliances such as fridges, laptops, air fryers, washing machines and some small air conditioners.

Does the inverter automatically switch between power sources?

Yes. The hybrid inverter can automatically switch between solar, battery, generator and mains power to help maintain a consistent power supply.

How much solar capacity is included?

The kit includes four 440W Jinko solar panels, providing a total solar capacity of 1760W.

Can the batteries charge from my vehicle or boat engine?

Yes. The included 24V 50A DC-DC charger allows the batteries to charge from a compatible vehicle alternator or vessel engine while travelling.

What happens when there is limited solar input?

The system can continue using stored battery power. When available, it can also draw from mains power or a generator through the hybrid inverter.

Can this kit be installed on a yacht or houseboat?

Yes. The kit is suitable for yachts and houseboats, but the installation should be planned for the vessel and completed by a suitably trained and qualified person.

Is professional installation required?

Yes. All electrical work must be carried out by a suitably trained and qualified person and follow the product safety guidelines. Incorrect installation may create safety risks or affect the warranty.
