24V to 12V 60A DC-DC Charger with 50A MPPT Solar

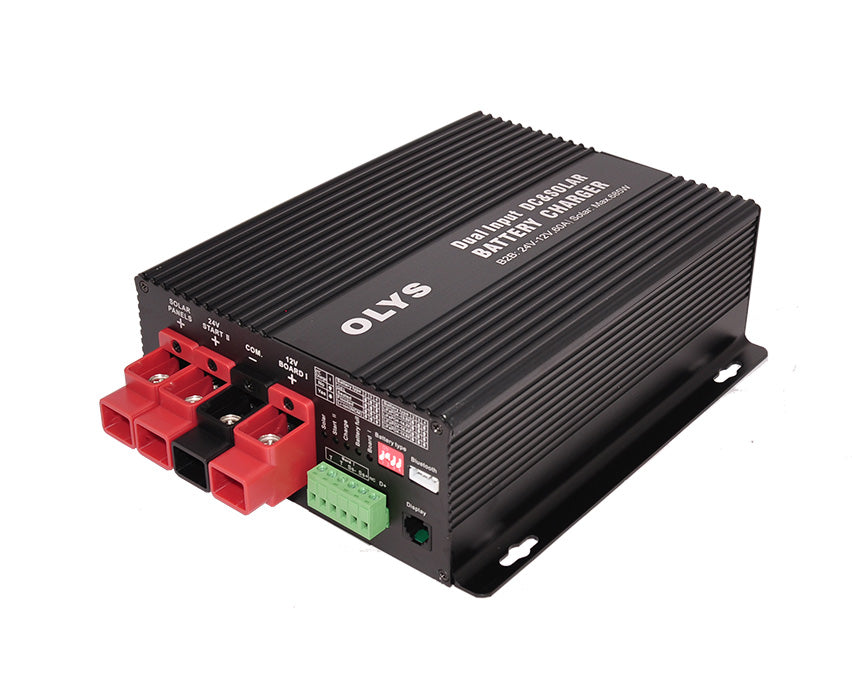

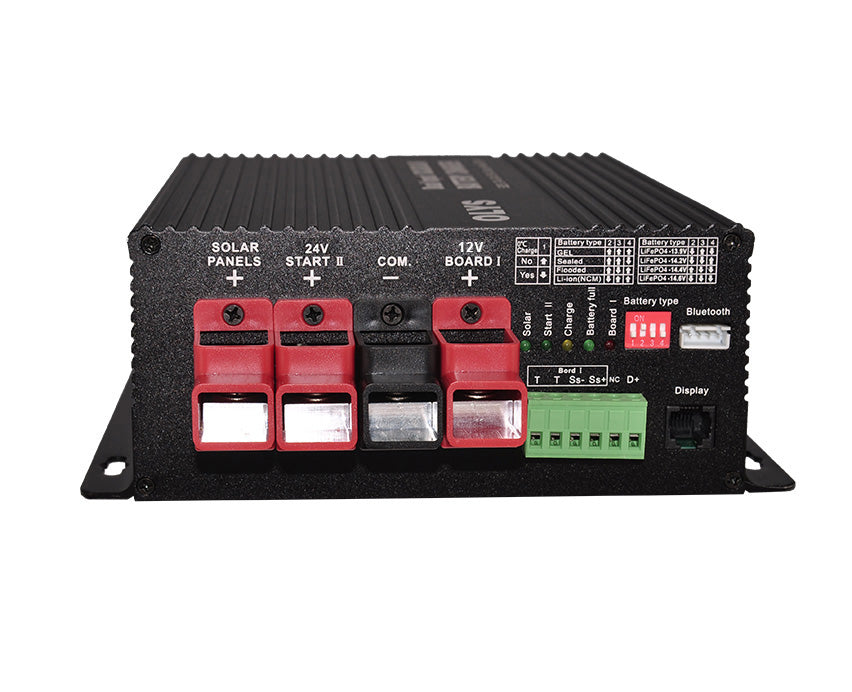

24V to 12V 60A DC-DC Charger with 50A MPPT Solar (Model: BS24126050)
Dual-Source Battery Charging – 24V Vehicle Input & Up to 685W Solar
The OLYS BS24126050 DC-DC Charger with MPPT charges a 12V auxiliary battery from a 24V vehicle electrical system or solar panels. Designed for trucks, motorhomes and camper conversions, it combines up to 60A DC-DC charging with a 50A MPPT solar controller in one unit.
Key Features & Benefits:
- Two Charging Sources – Recharge from your vehicle while travelling or use solar when parked.
- 24V to 12V DC-DC Charging – Connect a 24V vehicle system to a compatible 12V house battery.
- Up to 60A Vehicle Charging – Make use of driving time to replenish your auxiliary battery.
- 50A MPPT Solar Controller – Supports up to 685W of solar panels, subject to the specified input limits.
- Selectable Battery Profiles – Supports LiFePO4, AGM, GEL, sealed and flooded lead-acid batteries.
- Automatic Multi-Stage Charging – Regulates charging according to the selected battery profile.
- Monitoring Options – Supports the BT10 Bluetooth dongle and MT-2 display meter.
- Built-In Protection – Includes overheating, overvoltage and short-circuit protection.
Who Is It For?
- Truck & Motorhome Owners – Run a 12V house battery alongside a 24V vehicle electrical system.
- Camper Conversions – Combine vehicle and solar charging in one installation.
- Touring & Work Vehicles – Keep auxiliary batteries charged between stops and while parked in the sun.
Why Choose the BS24126050?
Bring vehicle and solar charging together in one practical solution. The BS24126050 suits travellers who want to charge on the road and continue replenishing their battery from solar at camp.
Technical Specifications
| Feature | BS24126050 |
|---|---|
| Brand | OLYS |
| Nominal Vehicle Input | 24V DC |
| Vehicle Input Voltage Range | 21V–32V DC |
| Battery Bank Voltage | 12V / 12.8V LiFePO4 |
| Maximum DC-DC Charging Current | 60A |
| Maximum DC-DC Charging Power | 780W, as specified by OLYS |
| Solar Charge Controller | MPPT |
| Maximum Solar Panel Power | 685W |
| Maximum Solar Charging Output | 50A |
| Maximum PV Open-Circuit Voltage | 50V |
| Recommended Auxiliary Battery Capacity | 100Ah–520Ah |
| Battery Compatibility | LiFePO4, AGM, GEL, sealed and flooded lead-acid; supported NCM lithium profile |
| D+ Control Signal | 16V–32V; required for vehicle charging |
| AC Mains Charging | Not available |
Charge on the Road. Recharge with Sunshine at Camp.
See the OLYS B2B/BS Series User Manual here: User Manual
Product FAQs
Q1: What is the difference between this model and the B2B241260?
This model adds MPPT solar charging to the 24V-to-12V DC-DC charging function.
Q2: Can I connect solar panels directly?
Yes, through the solar input. Keep the array within the charger’s power and voltage limits, allowing for increased panel voltage in cold weather.
Q3: Is it compatible with LiFePO4 batteries?
Yes. Select the correct profile and ensure the battery has a suitable BMS and can accept the charging current.
Q4: Does 60A DC-DC plus 50A solar mean 110A charging?
No. These are separate source ratings and should not be added together as a combined output rating.
Q5: Can it charge from 240V mains?
No. A separate AC battery charger is required.
Q6: Does vehicle charging need an ignition connection?
Yes. Connect the D+ control input as directed in the manual.
Q7: Can I use it with a 12V vehicle?
No. This model is designed for a 24V vehicle supply.
Q8: What should I check before installation?
Check alternator capacity, battery charging limits and solar array specifications. Have a qualified installer select suitable wiring, fuses and mounting arrangements.
