JK 4.3-Inch Touch Screen for JK-PB V19 BMS

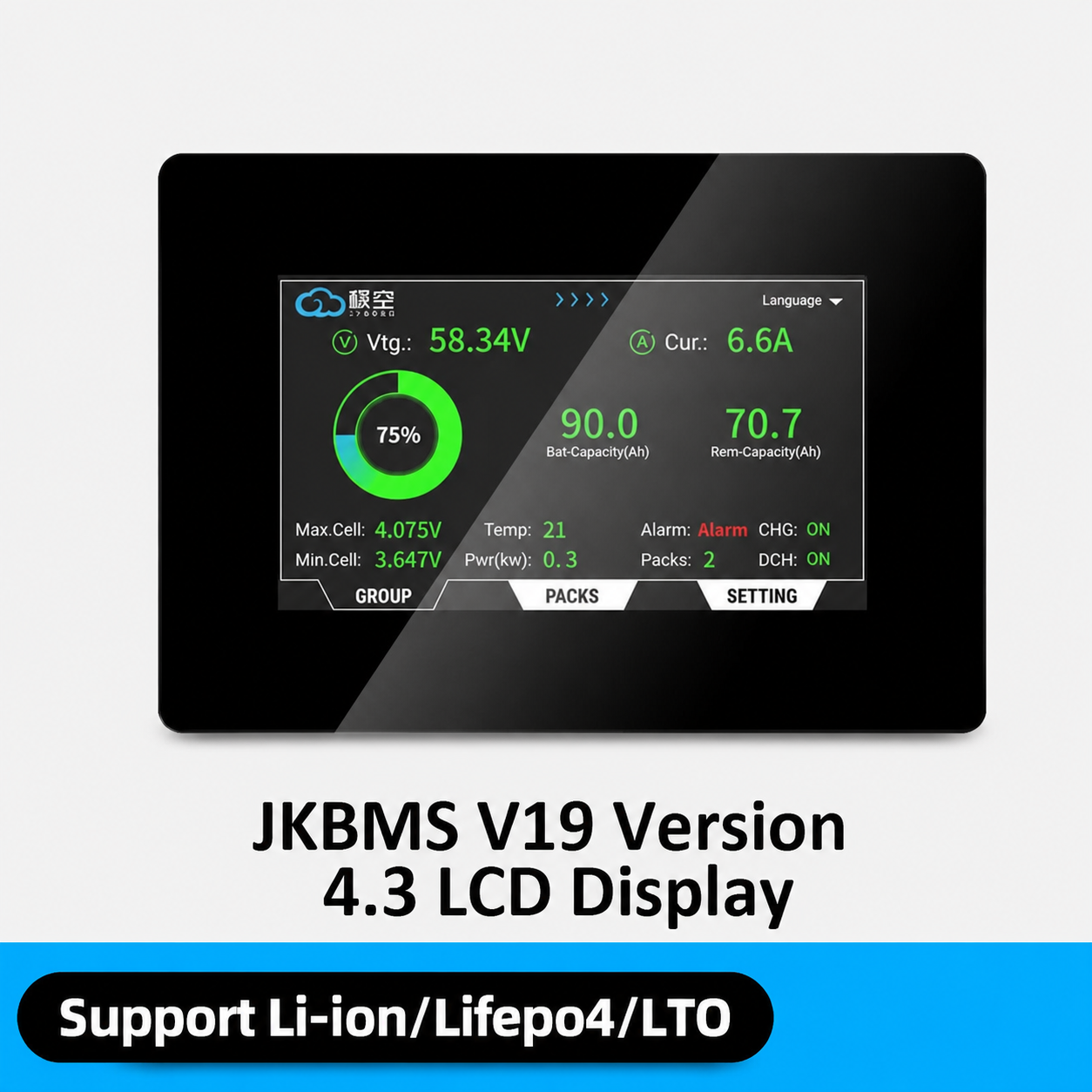

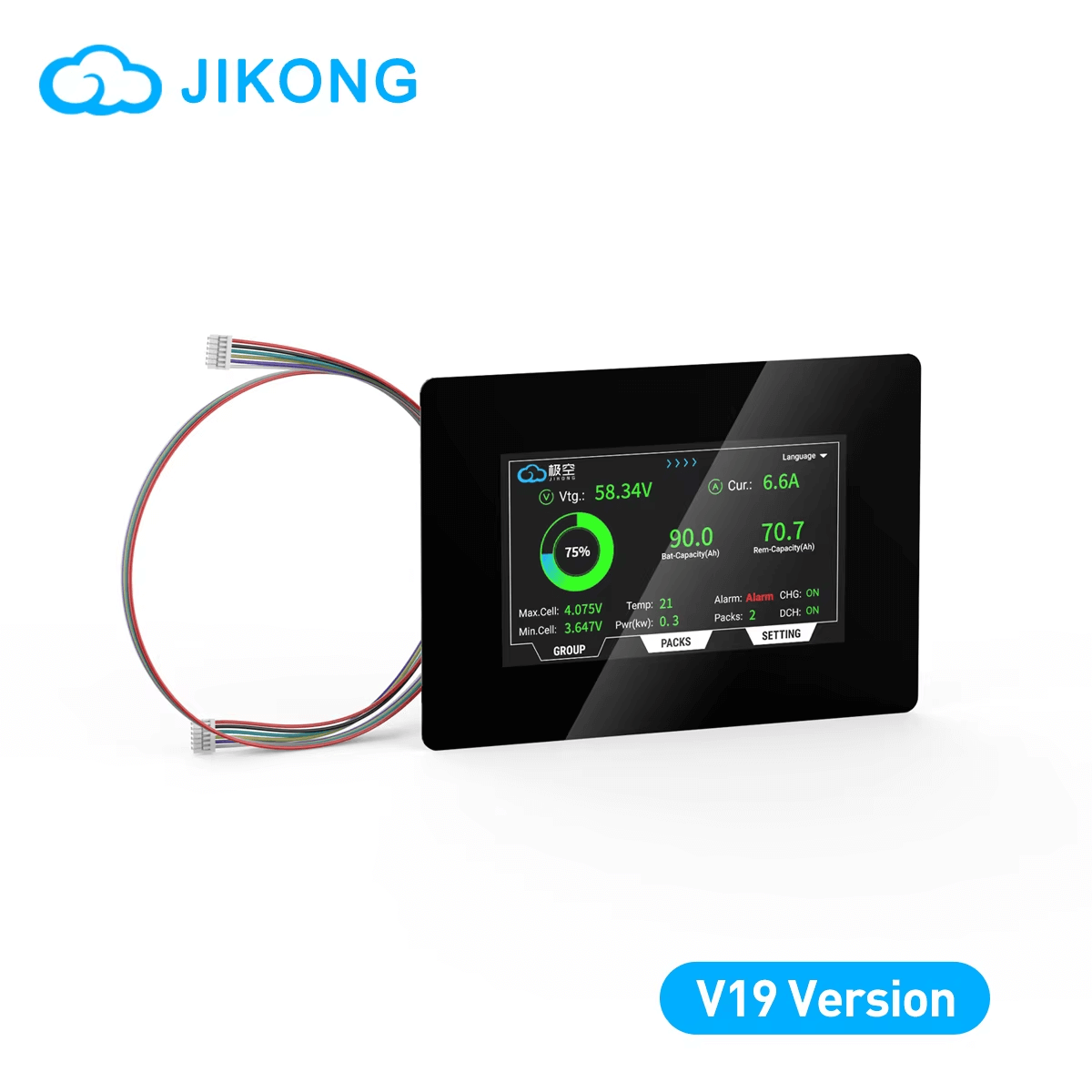

JK 4.3-Inch Touch Screen Display for JK-PB V19 BMS
Monitor your battery system clearly and conveniently with the JK 4.3-inch touchscreen display. Designed specifically for compatible JK-PB V19 BMS models, it provides real-time access to important battery information through a clear, easy-to-use colour display.
The screen connects directly to the BMS using the included 50cm TTL communication cable, making it suitable for DIY battery builds, off-grid energy storage systems and professional battery installations.
Key Features
- 4.3-inch colour TFT touchscreen display
- Clear 480 × 272 screen resolution
- Displays real-time battery system information
- Monitor battery voltage, current and state of charge
- View individual cell voltages and battery temperatures
- Shows charging and discharging status
- Supports monitoring of up to 16 parallel battery packs
- Designed for compatible JK-PB V19 smart BMS models
- 50cm TTL communication cable for flexible installation
- Compact, lightweight design

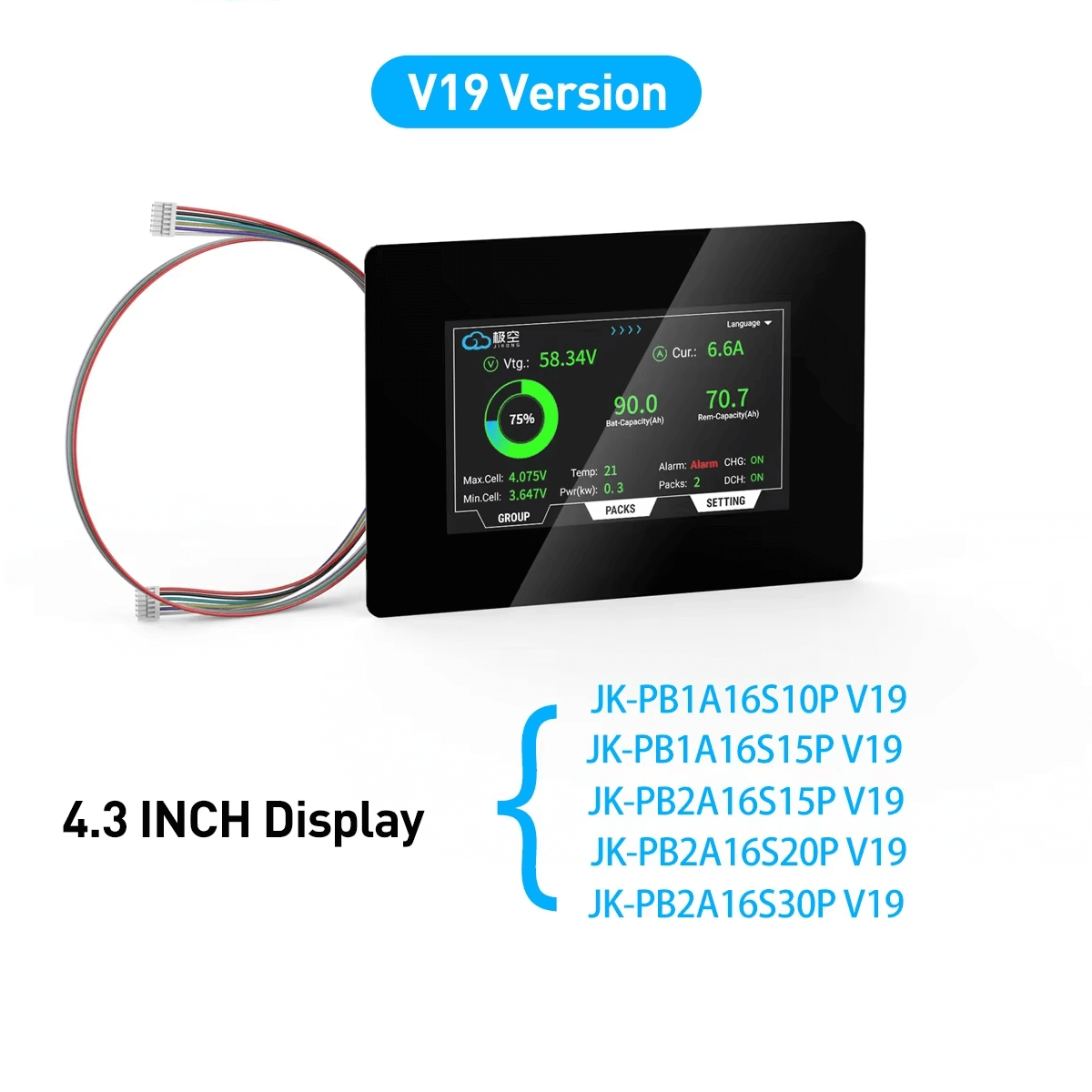

Compatible JK-PB V19 BMS Models
- JK-PB1A16S10P V19
- JK-PB1A16S15P V19
- JK-PB2A16S15P V19
- JK-PB2A16S20P V19
- JK-PB2A16S30P V19
Important: This display is designed for compatible JK-PB V19 BMS models only. Compatibility with older JK BMS versions or other JK BMS ranges is not guaranteed. Please confirm your BMS model and version before ordering.
Technical Specifications
| Brand | Jikong / JK BMS |
| Model | LCD-4.3-TTL-P |
| Display Size | 4.3 inches |
| Display Type | TFT LCD touchscreen |
| Resolution | 480 × 272 |
| Brightness | 300 nits |
| Power Supply | 9–36V DC |
| Power Consumption | Approximately 1.32W at 12V |
| Communication | TTL UART, 115200 bps |
| Connector | HY2.0mm 6-pin |
| Cable Length | 50cm |
| Operating Temperature | -20°C to +70°C |
| Package Dimensions | 22 × 16 × 5cm |
| Package Weight | 0.210kg |
| Mounting Hardware | Not included |
| Warranty | 12 months |
Please Note
This product is an external monitoring and control display. It is not a standalone BMS and does not independently provide battery balancing, overcharge protection, over-discharge protection, overcurrent protection or short-circuit protection. These functions are managed by the connected JK BMS.
Document
Video
Battery
Physical
- Weight
- 0.2kg
