Risen 475W N-Type TOPCon Bifacial Solar Panel – Dual Glass
Risen 475W N-Type TOPCon Bifacial Solar Panel – Dual Glass | RSM96-11-475BNDG

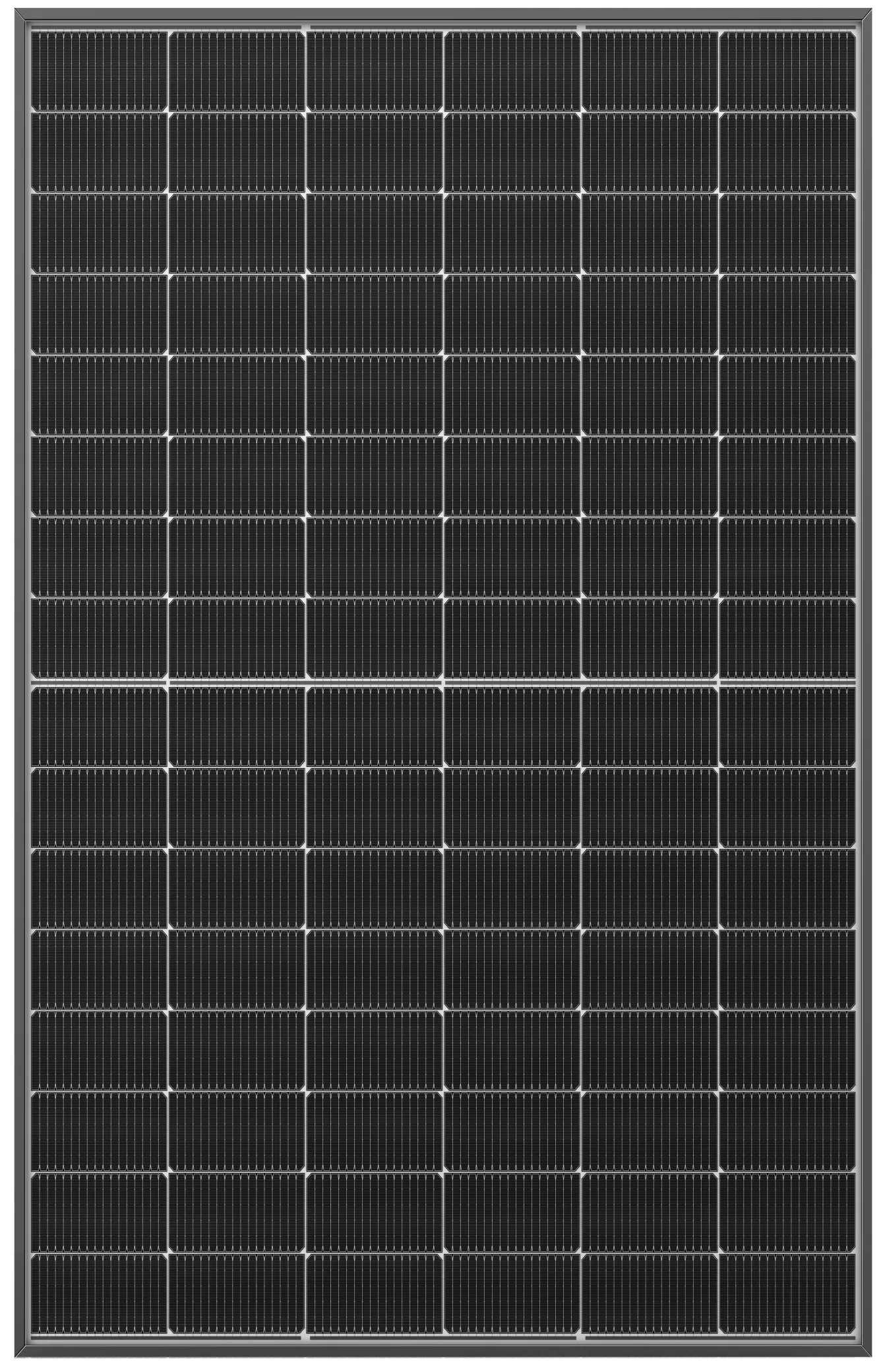

The Risen 475W RSM96-11-475BNDG is a high-efficiency N-Type TOPCon bifacial solar panel designed for residential, commercial and off-grid solar systems. Delivering 475W of front-side power with a module efficiency of 23.8%, this panel combines high output with strong low-light performance, excellent temperature characteristics and long-term durability.
Its bifacial design allows the rear of the panel to generate additional energy from reflected light, while the dual-glass construction provides added strength and protection for long-term outdoor use.
Why Choose the Risen 475W?
- N-Type TOPCon Technology: High-efficiency cell technology with excellent power generation and low-light performance.
- Bifacial Generation: Generates power from both the front and rear of the module, allowing additional energy production where suitable mounting conditions allow.
- High Efficiency: Delivers up to 23.8% module efficiency from a compact 475W panel.
- Dual Glass Construction: 1.6mm heat-strengthened glass on both the front and rear for improved durability.
- Low Degradation: 0.4% annual degradation over the 30-year linear performance warranty period.
- Exceptional Warranty: 25-year product warranty and 30-year linear performance warranty.
- Strong Mechanical Performance: Tested to 5400 Pa front load and 2400 Pa rear load under specified installation methods.
- 1500V System Voltage: Suitable for larger solar string configurations.
Electrical Specifications (STC – 475W Model)
| Specification | 475W Panel |
|---|---|
| Maximum Power (Pmax) | 475W |
| Voltage at Pmax (Vmp) | 30.78V |
| Current at Pmax (Imp) | 15.46A |
| Open Circuit Voltage (Voc) | 36.42V |
| Short Circuit Current (Isc) | 16.52A |
| Module Efficiency | 23.8% |
| Power Tolerance | 0 ~ +3% |
| Temperature Coefficient (Pmax) | -0.29% / °C |
| Maximum System Voltage | 1500V DC |
| Maximum Series Fuse Rating | 35A |
Bifacial Performance
The Risen RSM96-11-475BNDG is a bifacial solar module, allowing the rear side of the panel to capture reflected sunlight and contribute additional power generation.
Under Risen's specified test conditions with a 10% rear-side power gain, the panel can achieve an equivalent output of up to 523W. Actual rear-side gain will depend on factors such as mounting height, tilt angle, mounting structure and the reflectivity of the surface beneath the panels.
Mechanical Specifications
| Specification | Details |
|---|---|
| Cell Type | N-Type TOPCon |
| Cell Configuration | 96 Cells |
| Dimensions | 1762 × 1134 × 30 mm |
| Weight | 21.5 kg |
| Front Glass | 1.6 mm High Transmission, AR Coated Heat Strengthened Glass |
| Rear Glass | 1.6 mm Heat Strengthened Glass |
| Frame | Black Anodized Aluminium Alloy |
| Junction Box | IP68 Rated, 1500V DC |
| Cables | 4.0mm², 1200mm (+) / 1200mm (-) |
| Connector | MC4 EVO2 / PV-SY02 / Other approved connector |
Performance & Durability
- Excellent weak-light performance
- Excellent anti-LID and anti-PID performance
- Temperature coefficient of Pmax: -0.29% / °C
- Operating temperature range: -40°C to +85°C
- Maximum mechanical test load: 5400 Pa front / 2400 Pa rear
- Positive power tolerance: 0 to +3%
- Designed for residential and commercial solar applications
QLD Pickup Available. Freight Australia-wide available. For pallet pricing or bulk orders, contact our team directly.
Compatibility
Suitable for use with a wide range of off-grid and hybrid solar systems, including:
- Deye Hybrid Inverters
- Growatt Off-Grid & Hybrid Inverters
- Victron Solar Systems
- 48V Lithium Battery Systems
- Complete LiFePO4OZ Off-Grid Kits
If you're unsure about string sizing or inverter compatibility, our team can help design your system.
Get high-efficiency N-Type bifacial solar performance with the Risen 475W TOPCon panel.
Specifications sourced from the official Risen Energy datasheet – Model RSM96-11-475BNDG.
